Circuit Diagram

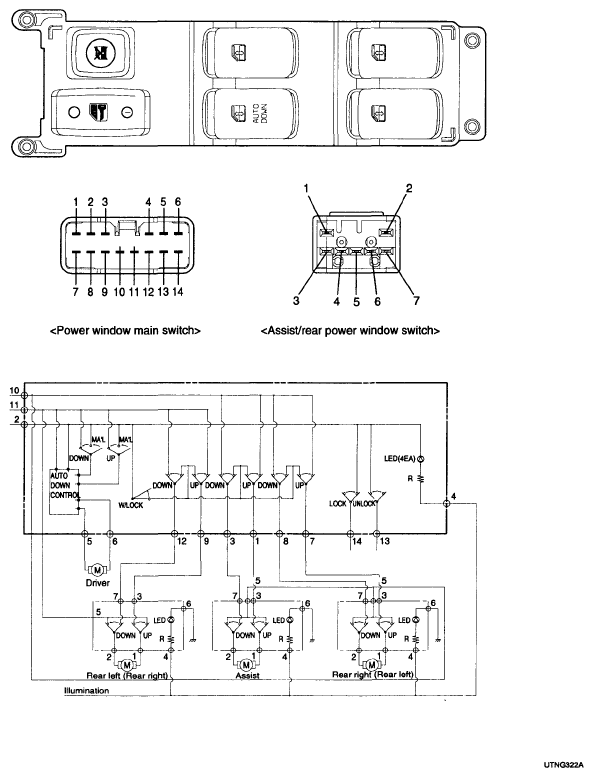

Fig 1: Power Window Switch - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
