Charging System: Generator: Component

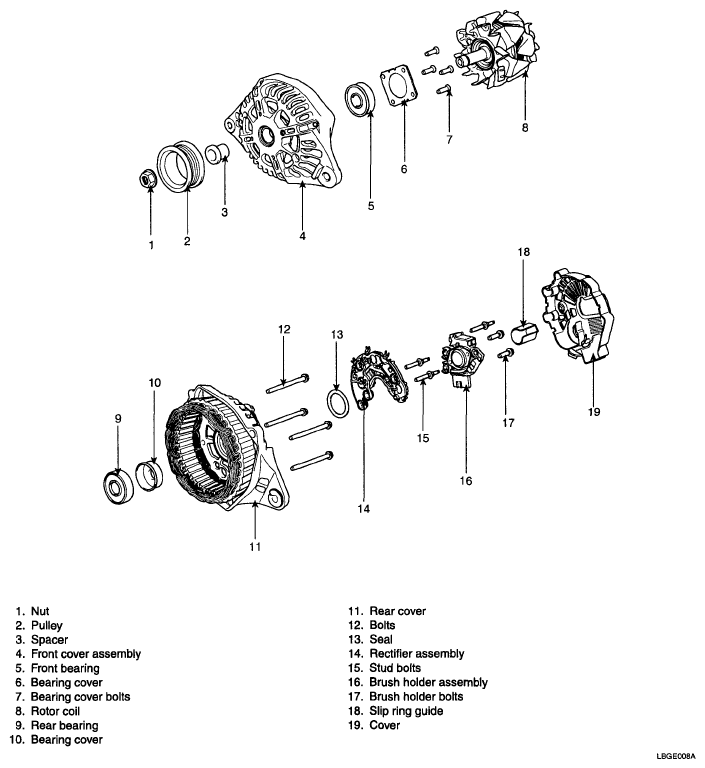

Fig 1: Identifying Generator Component

G04801421

Courtesy of HYUNDAI MOTOR CO.
