Charging System: Generator: Replacement

  1. Disconnect the battery negative terminal first, then the positive terminal.
  2. Temporarily loosen the water pump pulley bolts.

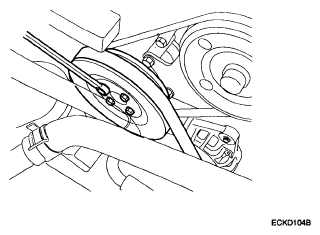

    Fig 1: Identifying Water Pump Pulley Bolts
    G04801098Courtesy of HYUNDAI MOTOR CO.
  3. Remove the generator drive belt (A), after loosening the adjusting bolt and mounting bolt. (Refer to step  9).
  4. Remove the power steering pump belt (B). (Refer to GENERAL(STEERING SYSTEM) ).

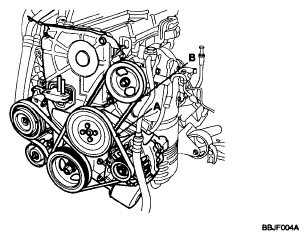

    Fig 2: Identifying Power Steering Pump Belt And Generator Drive Belt
    G04801418Courtesy of HYUNDAI MOTOR CO.
  5. Remove the water pump pulley.
  6. Remove the power steering pump. (Refer to GENERAL(STEERING SYSTEM) - power steering pump).
  7. Remove the power steering pump bracket.
  8. Disconnect the generator connector (A), and remove the cable (B) from generator "B" terminal.

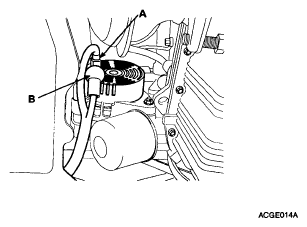

    Fig 3: Locating Generator Connector And Cable
    G04801419Courtesy of HYUNDAI MOTOR CO.
  9. Remove the adjusting bolt (A) and mounting bolt (B).
  10. Remove the generator brace (C).
  11. Pull out the through bolt (D) and then remove the generator (E).

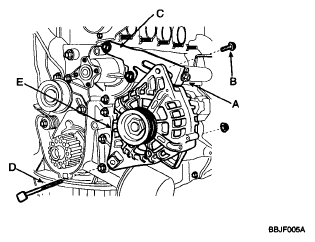

    Fig 4: Locating Adjusting Bolt, Generator Brace And Mounting Bolt
    G04801420Courtesy of HYUNDAI MOTOR CO.
  12. Installation is the reverse order of removal.
  13. Pretighten the water pump pulley bolts.
  14. Adjust the power steering pump belt tension. (Refer to GENERAL(STEERING SYSTEM) - power steering pump).
  15. Adjust the generator belt tension after installation. (Refer to GENERATOR BELT INSPECTION AND ADJUSTMENT ).
  16. Tighten the water pump pulley bolts.
