Component Inspection
- IG "OFF".
- Disconnect Fuel Level Sensor harness connector.

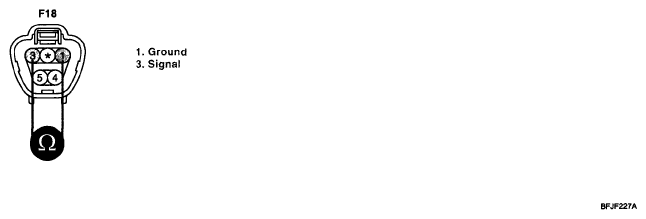

- Measure the resistance between terminal 1 and 3 of Fuel Level Sensor harness connector. (Component side) (Measure the resistance while changing the float position.)FUEL LEVEL SENSOR SPECIFICATION
Float Position Sender Resistance (Ω) Fuel Height at Tank Bottom (mm) Fuel Tank Volume Reference only lit. U.S.gal. S/F 6.0±2 155.6±2 43.0 11.4 G/F 15.0±2 151.8±2 42.0 11.1 7/8 25.0±2 135.6±2 37.5 9.9 6/8 36.0±2 120.6±2 33.0 8.7 5/8 50.0±2 106.2±2 28.5 7.5 4/8 66.0±2 93.1±2 24.0 6.3 3/8 86.0±2 79.9±2 19.5 5.2 2/8 110.2±2 66.4±2 15.0 4.0 1/8 142.0±2 51.8±2 10.5 2.8 W/G 170.0±2 34.5±2 6.6 1.7 G/E 184.0±2 29.6±2 5.0 1.3 S/E 200.0±2 25.2±2 4.0 1.1 NOTE:- S/F: Sensor Full
- G/F: Gauge Full
- W/G: Warning Point
- G/E: Gauge End
- S/E: Sensor End
- 7/8, 6/8, 5/8, 4/8, 3/8, 2/8, 1/8: Indicator position in cluster
- Is the measured resistance within specification ?
YES : --> Substitute with a known-good ECM/PCM and check for proper operation. If the problem is corrected, replace ECM/PCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO : --> Substitute with a known-good Fuel Level Sensor and check for proper operation. If the problem is corrected, replace Fuel Level Sensor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
