Components (1): Notes

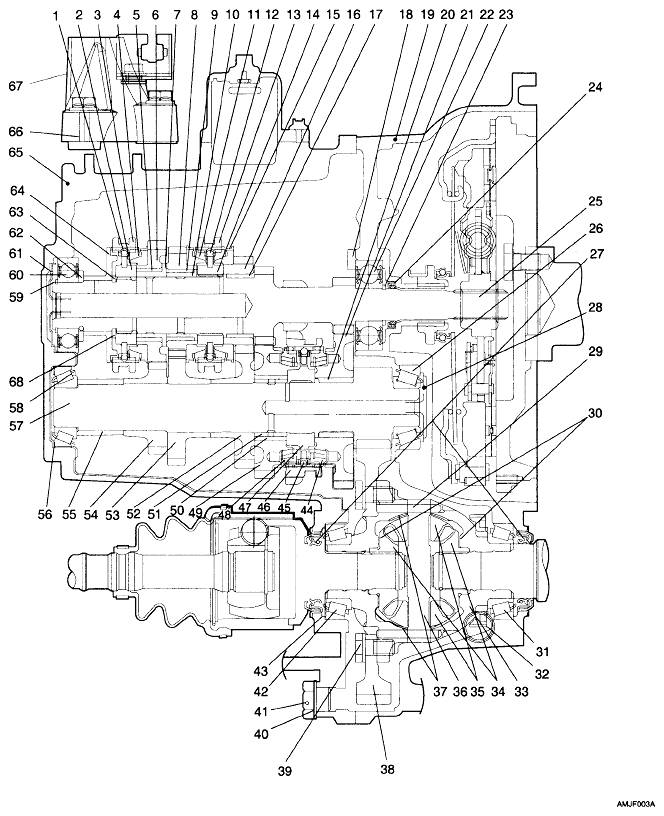

Fig 1: Identifying Manual Transaxle Component (1 Of 2)
G04801945Courtesy of HYUNDAI MOTOR CO.

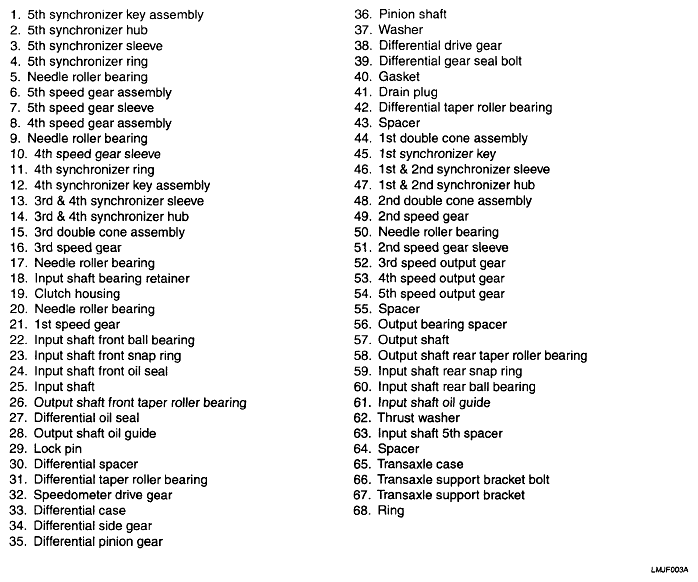

Fig 2: Identifying Manual Transaxle Component (2 Of 2)
G04801946Courtesy of HYUNDAI MOTOR CO.
