Circuit Diagram For Charging System

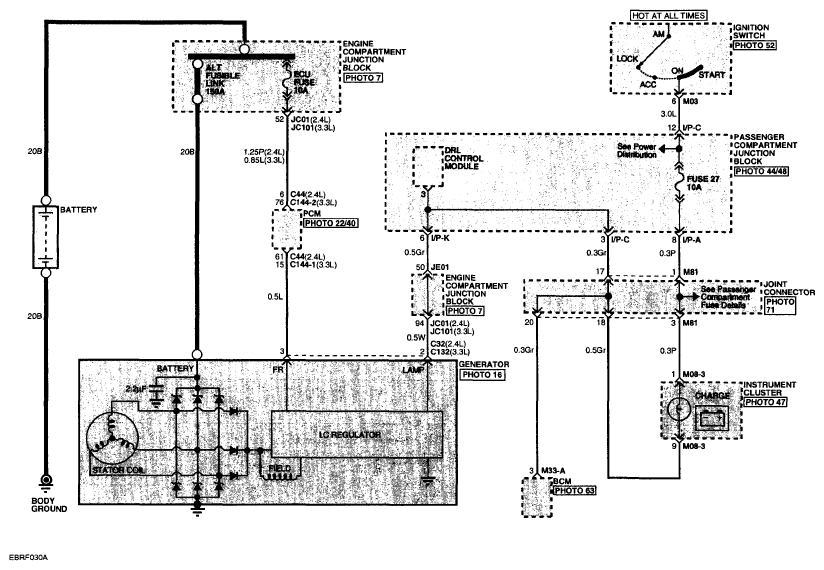

Fig 1: Circuit Diagram For Charging System
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
