Engine Control System Diagnosis (1 Of 2)
>>
DTC Troubleshooting Procedures
>>
DTC P0122 Throttle/Pedal Position Sensor/Switch "A" Circuit Low Input
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

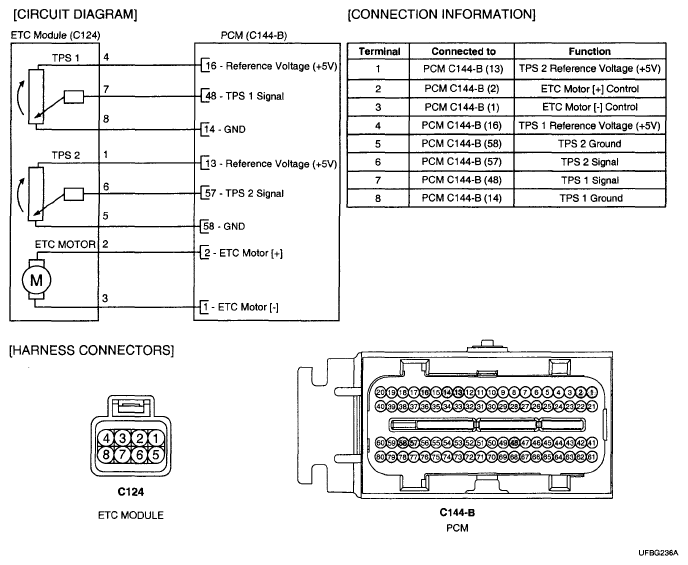

Fig 1: Electronic Throttle Control Module - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
