DTC P0552 Power Steering Pressure Sensor/Switch Circuit Low Input
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

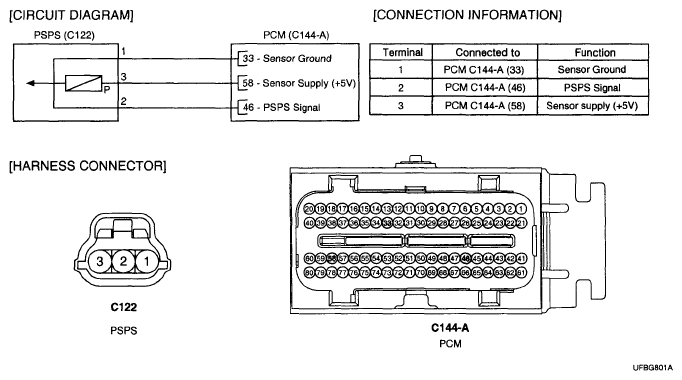

Fig 1: Power Steering Pressure Sensor/Switch Circuit - Schematic Diagram (Low Input)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
