Engine Control System Diagnosis (2 Of 2)
>>
DTC Troubleshooting Procedures
>>
Trouble Shooting For DTC
>>
DTC P2122 Throttle/Pedal Position Sensor/Switch "D" Circuit Low Input
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

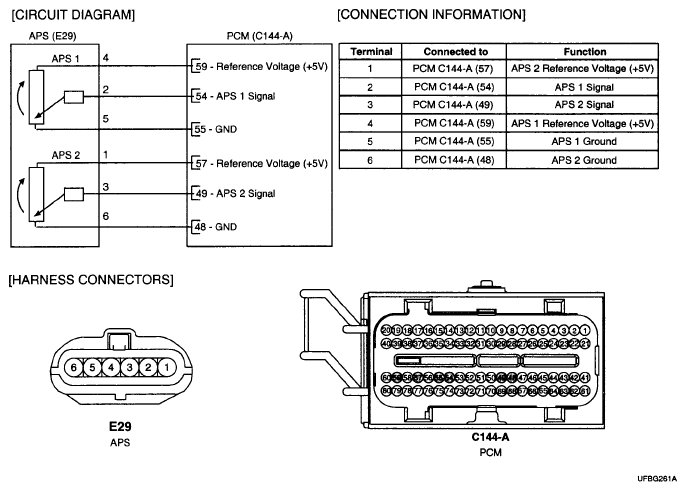

Fig 1: Throttle/Pedal Position Sensor/Switch Circuit - Schematic Diagram (Low Input)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
