Elantra GLS, 4D Hatchback, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System (G4GC-GSL 2.0)
>>
DTC Troubleshooting Procedures
>>
DTC P0506 Idle Air Control System-Rpm Lower Than Expected
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

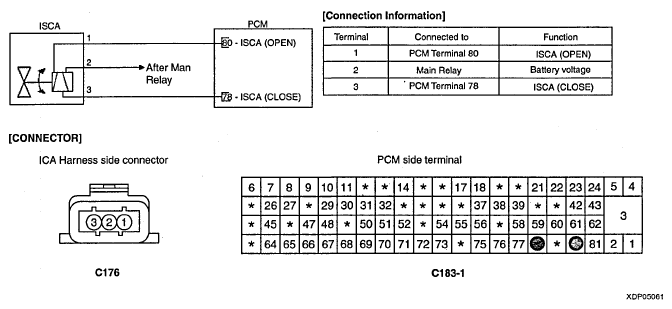

Schematic Diagram
Fig 1: Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
