Manual Transaxle Shift Control: Components

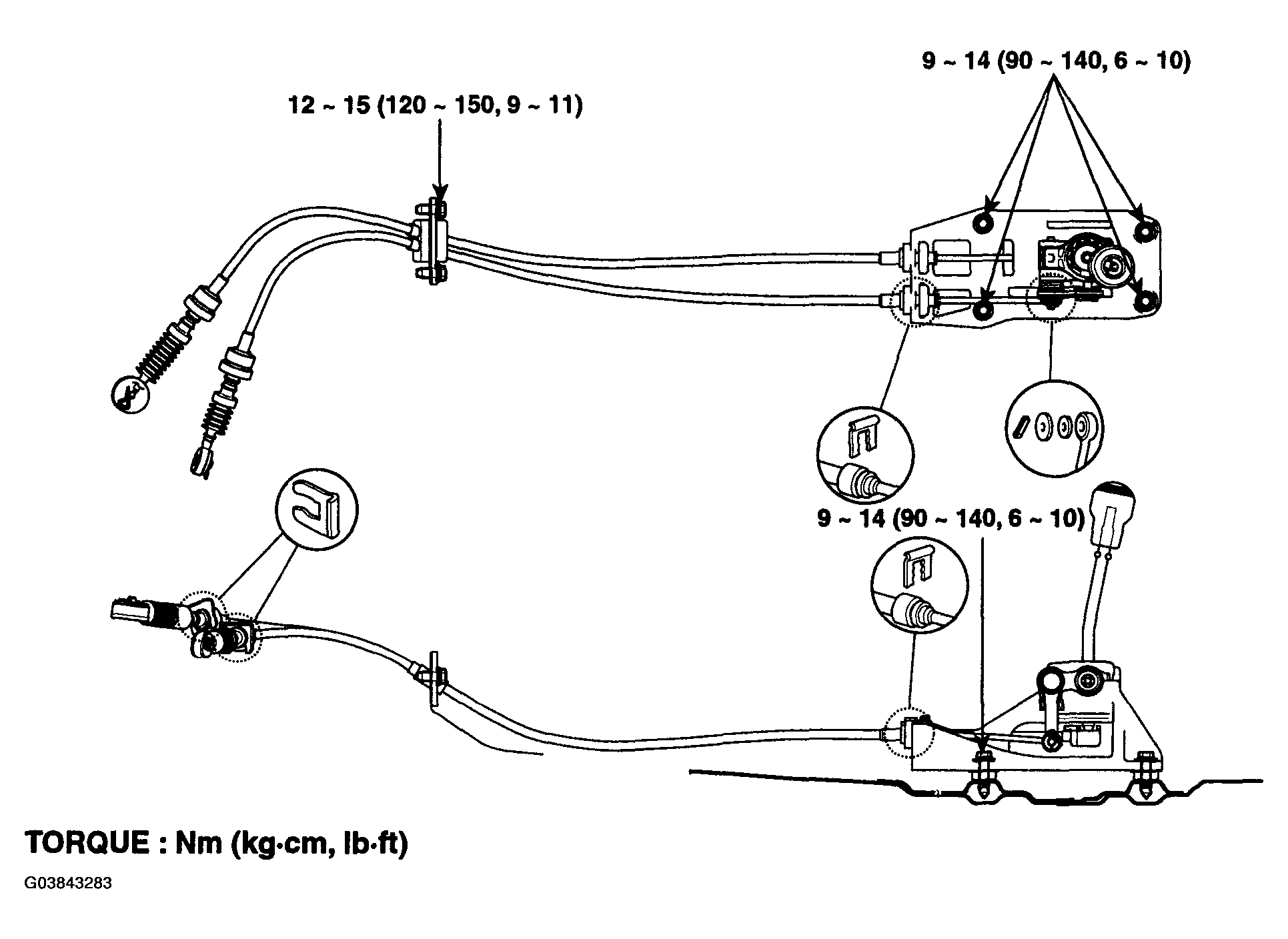

Fig 1: Identifying Manual Transaxle Shift Control Components With Toque Specifications
G03843283Courtesy of HYUNDAI MOTOR CO.
