Manual Transaxle: Components

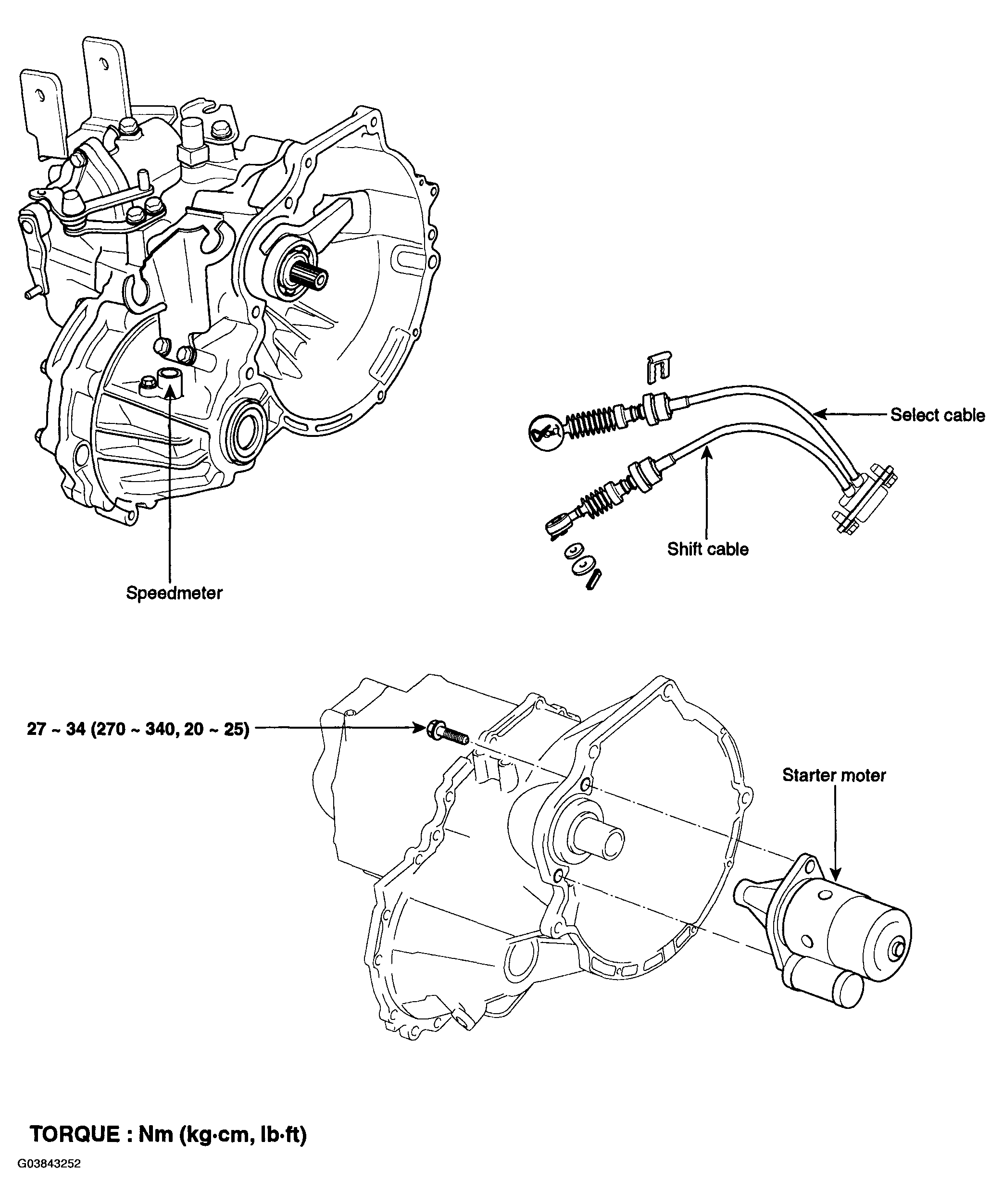

Fig 1: Starter Motor And Select Cable With Torque Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
