ETACS Module Input Signal Test: Notes

  1. Disconnect the wire connector(B) from the ETACS module(A).
  2. Inspect the connector(B) on wire harness side as shown in Fig 1.

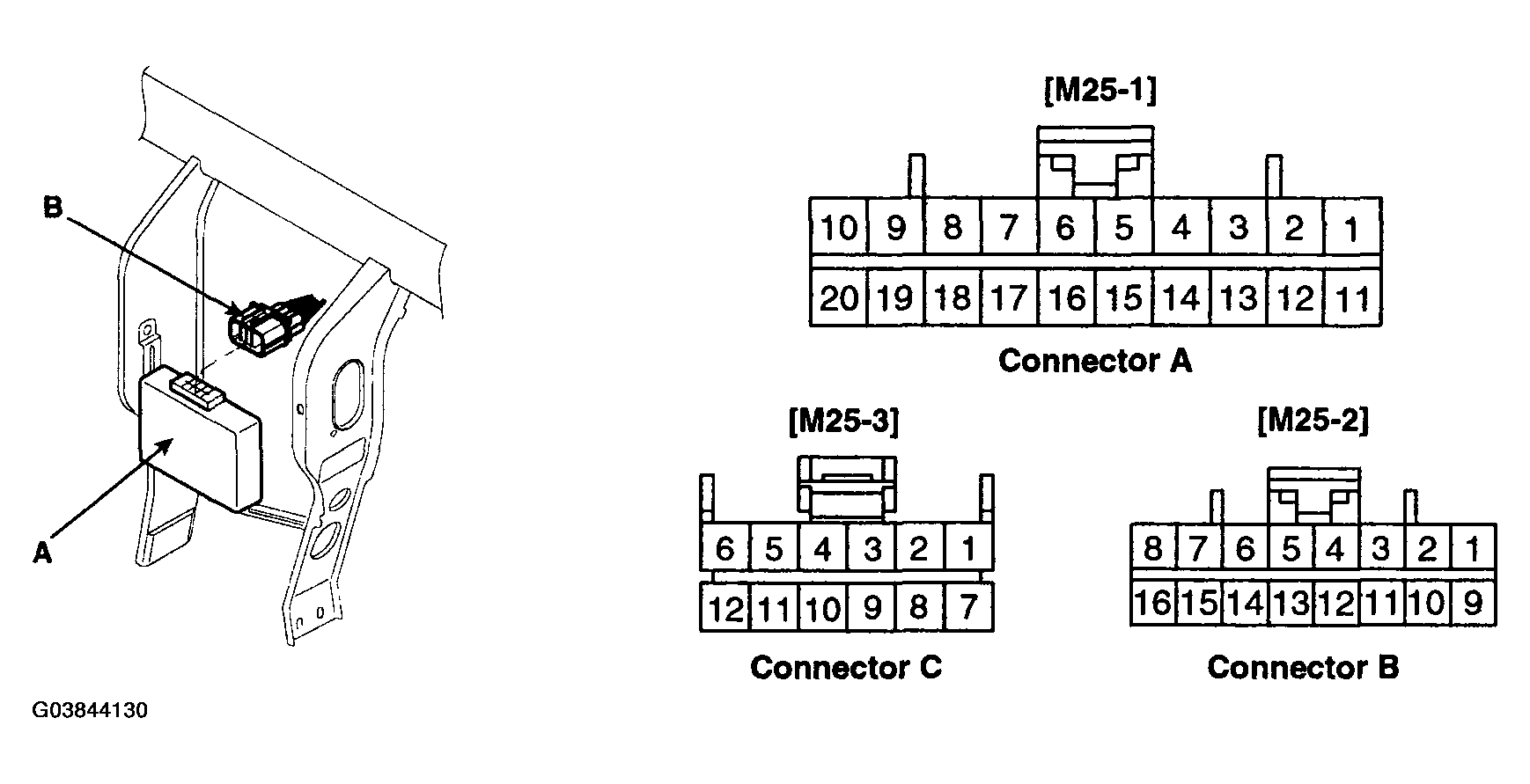

    Fig 1: Identifying ETACS Module Connectors
    G03844130Courtesy of HYUNDAI MOTOR CO.
    ETACS MODULE REFERENCE CHART

    Terminal No. Connector A Connector B Connector C
    1 B+ Driver door unlock relay -
    2 Air bag signal Door warning switch -
    3 Rear door lock switch Chime bell Key hole illumination lamp
    4 Power window relay Seat belt switch Code saving
    5 IGN1 Driver door lock switch Driver door key unlock switch
    6 IGN2 Assist door lock switch Driver door key lock switch
    7 - Washer switch (1) Hood switch
    8 Driver door switch Intermittent wiper switch (1) Hazard lamp relay
    9 Assist door switch Intermittent wiper volume (1) Siren
    10 Trunk switch Wiper relay (1) Trunk key unlock switch (only 4 doors)
    11 Room lamp - -
    12 Rear defogger relay Rear defogger switch (1) Burglar alarm relay
    13 Seat belt-warning lamp -
    14 Door lock relay Tail lamp switch
    15 Tail lamp relay -
    16 Ground D.R.L
    17 -
    18 Door switch
    19 Alternator "L"
    20 Door unlock relay
    NOTE:
    (1) : only Keyless entry & Burglar alarm system.
