Programming Transmitter Code

To program the transmitter code, first connect keyless adapter (09900-21300) to DLC(Data Link Connector) cable of hi-scan as shown in Fig 1.

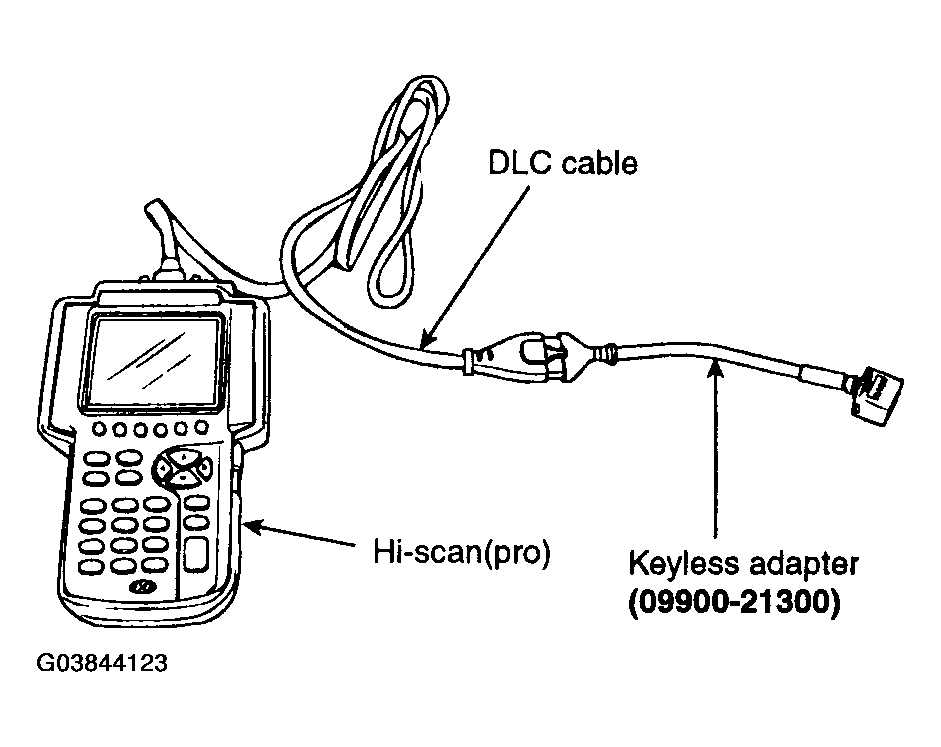

Fig 1: Connecting Keyless Adapter To DLC (Data Link Connector) Cable Of HI-Scan
Courtesy of HYUNDAI MOTOR CO.
After connecting keyless adapter(A) to the multi purpose check connector (10pins) beside data link connector in driver side crash pad lower panel, turn the power on hi-scan.

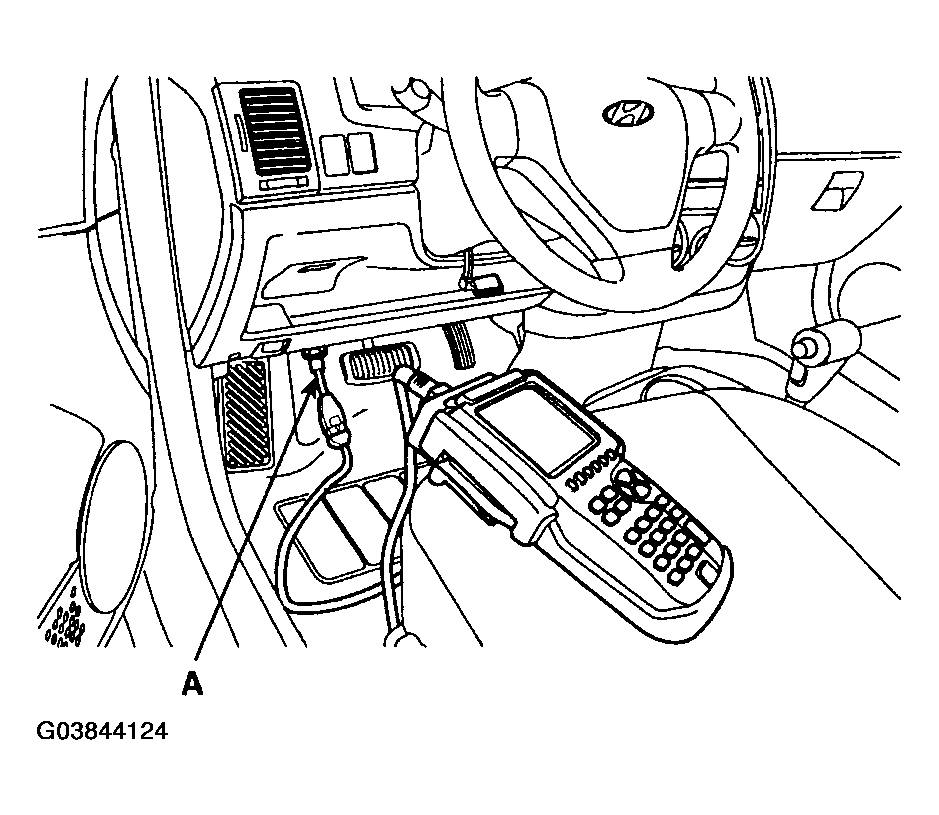

Fig 2: Connecting Keyless Adapter(A) To Multi Purpose
Courtesy of HYUNDAI MOTOR CO.
Select the vehicle model and then do "CODE SAVING".

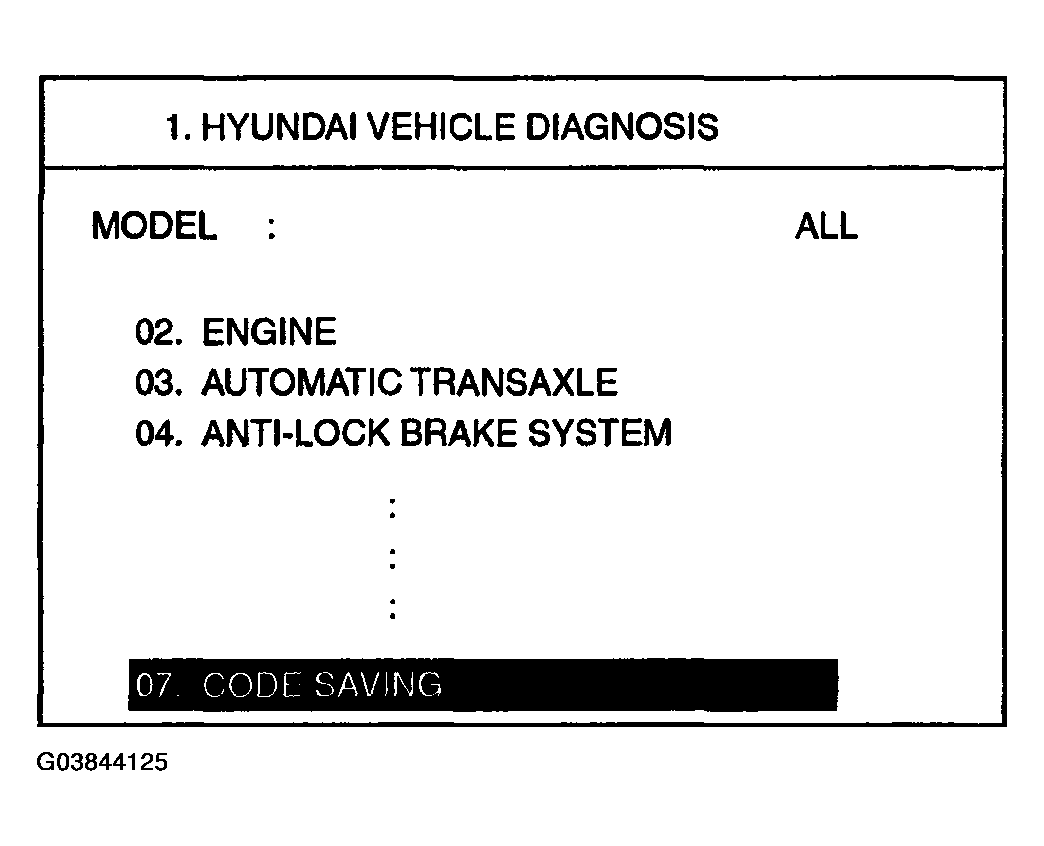

Fig 3: Identifying HI-Scan Display - Code Saving (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.
After selecting "CODE SAVING" menu, press the "ENTER" key, then the screen will be shown in Fig 4.

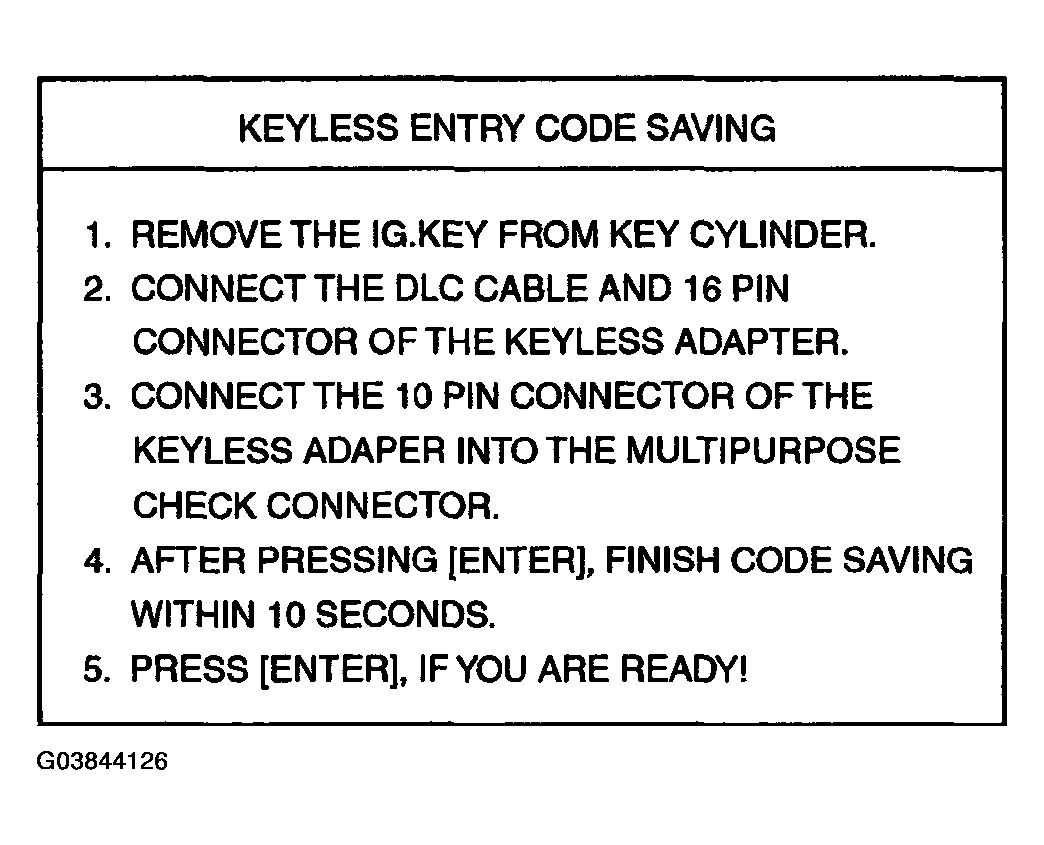

Fig 4: Identifying HI-Scan Display - Code Saving (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.
After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving.
Follow steps 1 to 3 for code saving procedures.

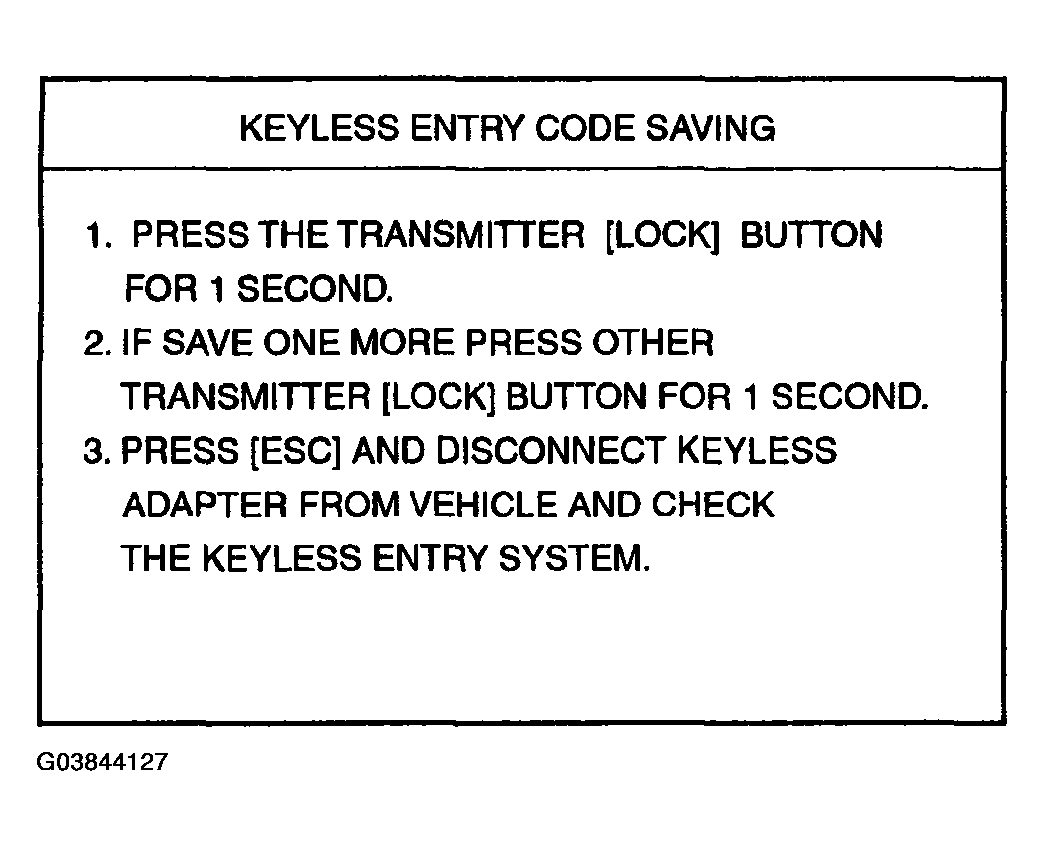

Fig 5: Identifying HI-Scan Display - Code Saving (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Disconnect keyless adapter (09900-21300) from DLC cable and then proceed to self-diagnosis with DLC cable connected.
