Power Window Sub Switch

  1. Remove the power window sub switch from the rear door trim panel.

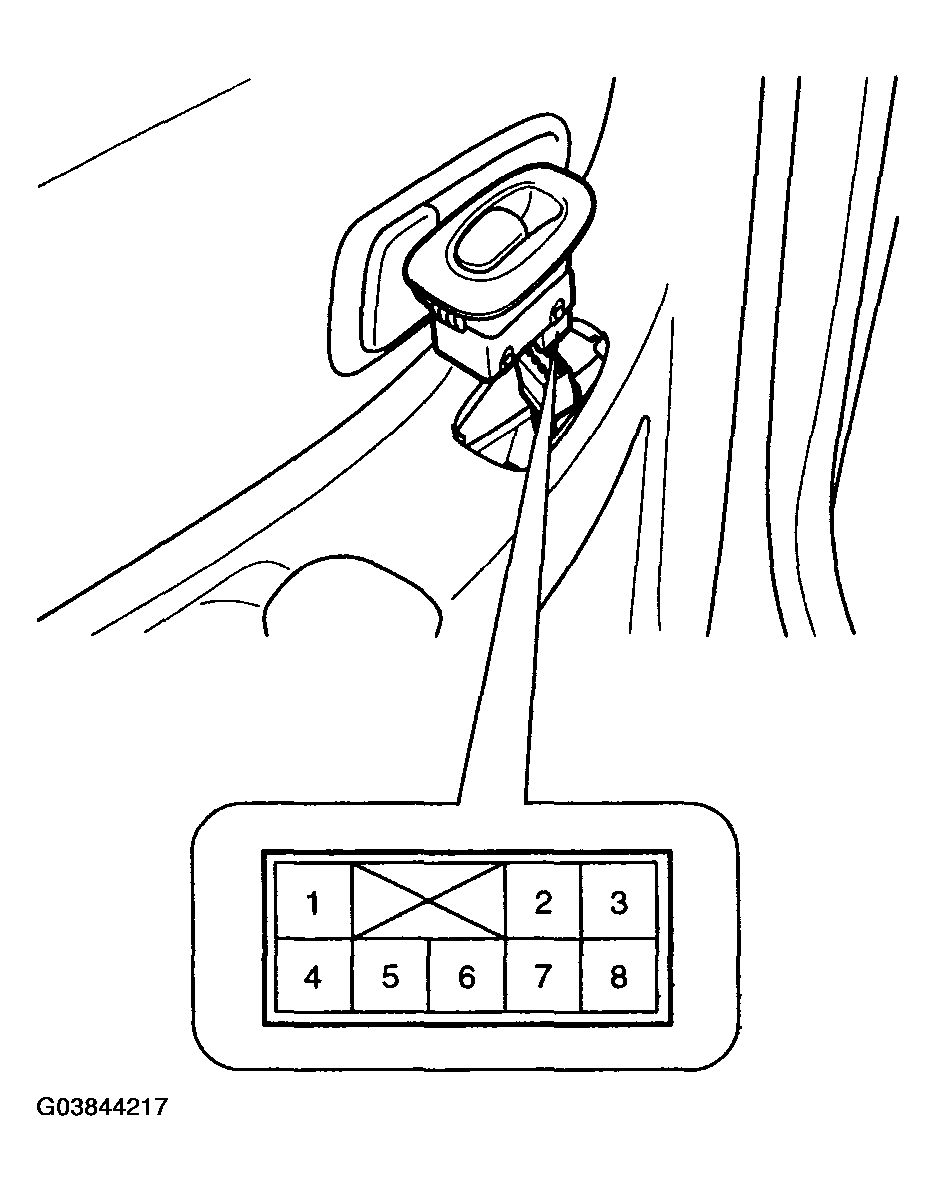

    Fig 1: Identifying Power Window Sub Switch Connector
    G03844217Courtesy of HYUNDAI MOTOR CO.
  2. Check for continuity between the terminals.

    If continuity is not as specified in the table, replace the power window switch.

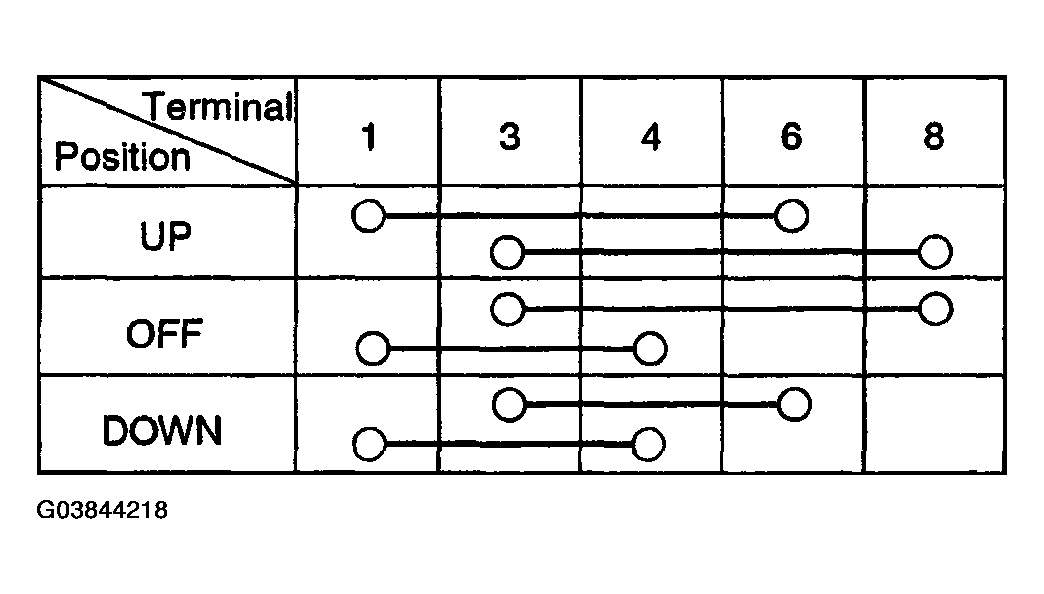

    Fig 2: Checking Power Window Sub Switch Continuity
    G03844218Courtesy of HYUNDAI MOTOR CO.
