EVAP System Monitoring: Notes

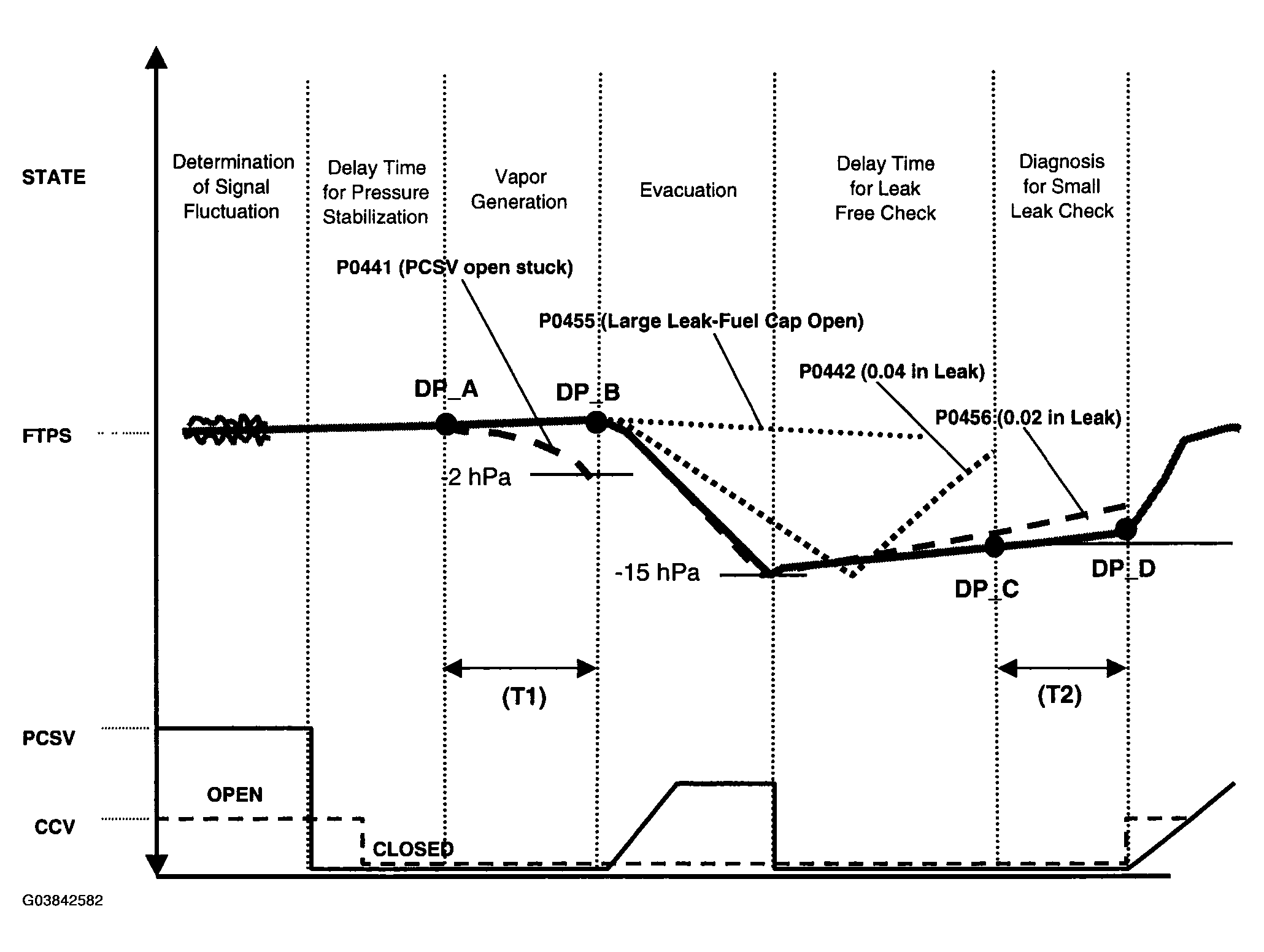

Fig 1: Evaporative System Monitoring
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
