2006
>>
Elantra Limited
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Auxiliary Emission Control Systems
>>
Emissions Control System
>>
General
>>
Schematic Drawing
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

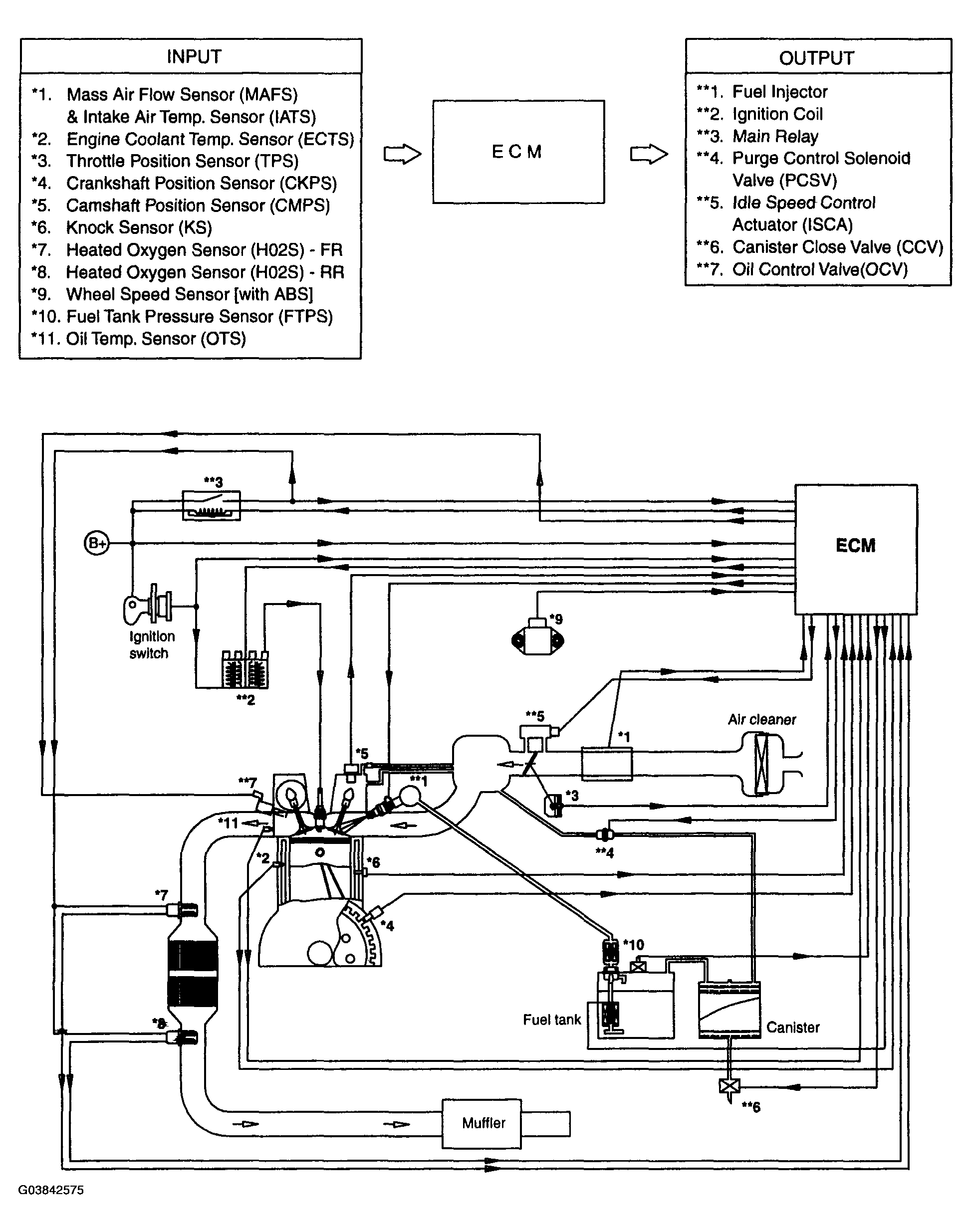

Schematic Drawing
Fig 1: Schematic Drawing - Emissions Control System
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
