Control Circuit Inspection

Check for open in control harness.
1. Ignition "OFF".
2. Disconnect PCM connector
3. Measure resistance between terminals 4 of the HO2S heater harness connector and 9 of the PCM harness connector.
  Specification: Approx 0Ω

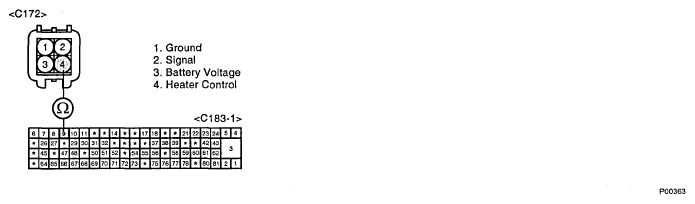

  Fig 1: Measuring Resistance Between Terminals 4 Of HO2S Heater Connector And 9 Of PCM Connector
  Courtesy of HYUNDAI MOTOR CO.
4. Is resistance within the specification?
  Yes:
  - Go to next step as below
  No:
  - Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check for short to ground in control circuit.
1. Measure resistance between terminal 4 of the HO2S heater harness connector and chassis ground.
  Specification: infinite

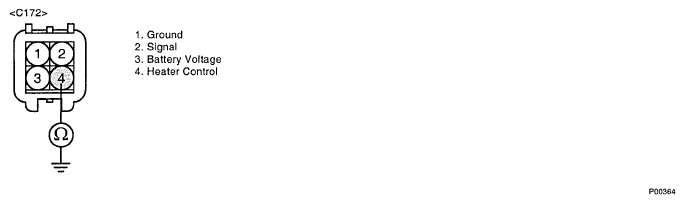

  Fig 2: Measuring Resistance Between Terminal 4 Of HO2S Heater Connector And Chassis Ground
  Courtesy of HYUNDAI MOTOR CO.
2. Is resistance within the specification?
  Yes:
  - Go to next step as below
  No:
  - Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check for short to power in control circuit.
1. Reconnect the PCM connector.
2. Ignition "ON" & Engine "OFF"
3. Measure voltage between terminal 4 of the HO2S heater harness connector and chassis ground
  Specification: Approx 0Ω

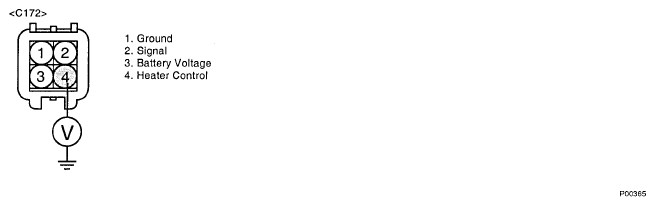

  Fig 3: Measuring Voltage Between Terminal 4 Of HO2S Heater Connector And Chassis Ground
  Courtesy of HYUNDAI MOTOR CO.
4. Is voltage within the specification?
  Yes:
  - Go to "COMPONENT INSPECTION " procedure.
  No:
  - Repair open or short to ground in control circuit and go to "VERIFICATION OF VEHICLE REPAIR " procedure
