Component Inspection

Measure resistance between terminals 1 and 5 of the sensor connector (Component side).

SPECIFICATION

TERMINALS RESISTANCE CHART

IATS	Normal Parameter
IATS	20°C (68°F)	40°C (104°F)	80°C (176°F)
Resistance	2.35 ~ 3.54kΩ	1.11 ~ 1.19kΩ	0.31 ~ 0.32 kΩ

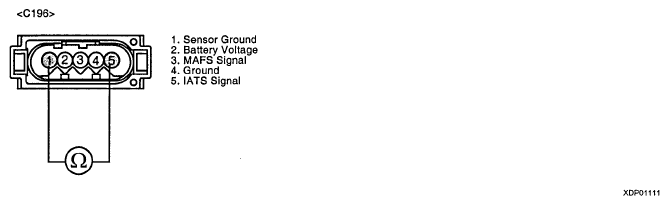

Fig 1: Measuring Resistance Between Terminals 1 And 5 Of Sensor Connector

Courtesy of HYUNDAI MOTOR CO.

Is resistance within the specification?
Yes:
- Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
No:
- Check IATS for contamination, deterioration, or damage. Substitute with a known-good IATS and check for proper operation. If the problem is corrected, replace IATS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
