Signal Circuit Inspection
- Ignition "OFF".
- Disconnect IATS connector.

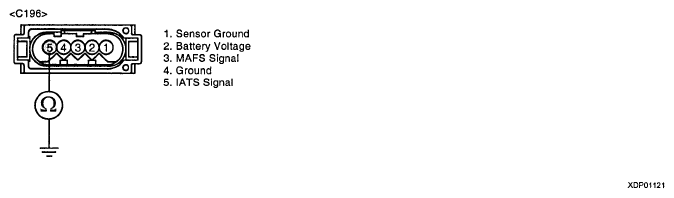

- Measure resistance between terminal 5 of the sensor harness connector and chassis ground.
Specification: Infinite
- Is resistance within the specification?
Yes:
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
No:
- Repair short to ground in harness and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
