Reference Ground Circuit Inspection
- Ignition "OFF"
- Disconnect HO2S and PCM connectors.

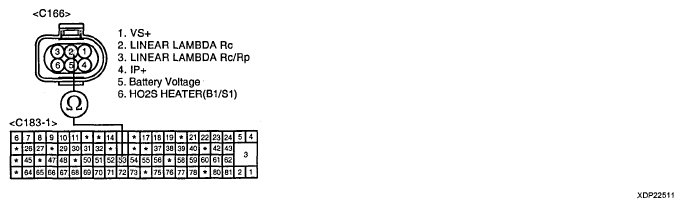

- Measure resistance between terminals 2 of the sensor harness connector and 53 of the PCM harness connector
Specification: Approx. 0Ω
- Is resistance within the specification?
Yes:
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure
No:
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
