Components Location

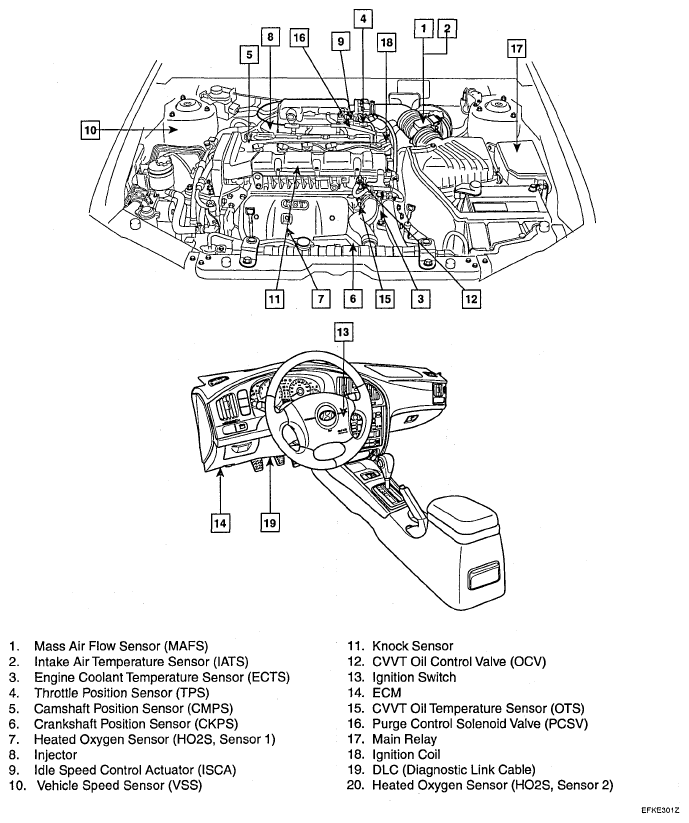

Fig 1: Identifying Engine Control System Components Location (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

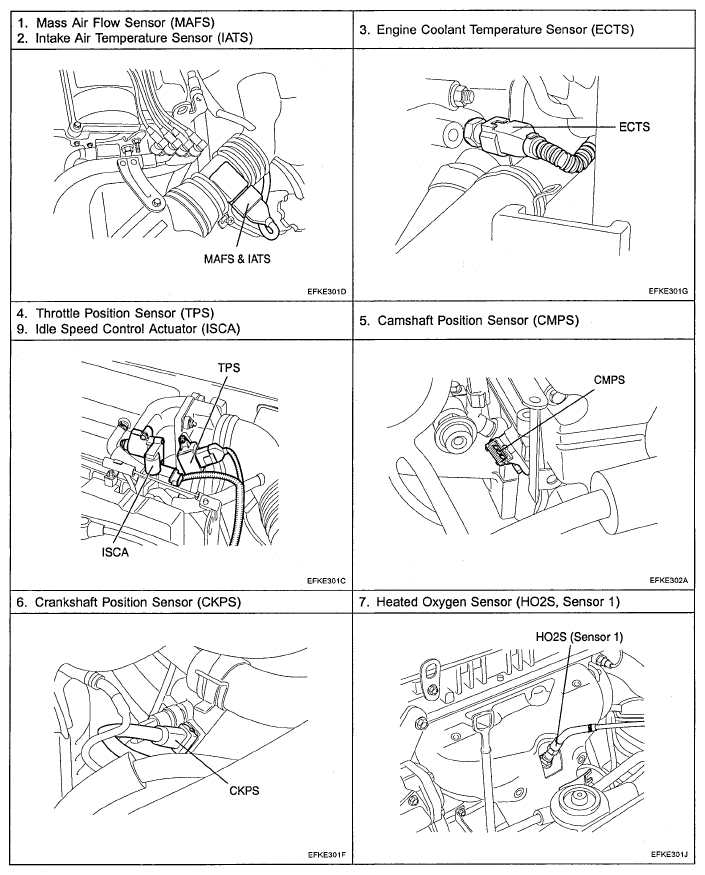

Fig 2: Identifying Engine Control System Components Location (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

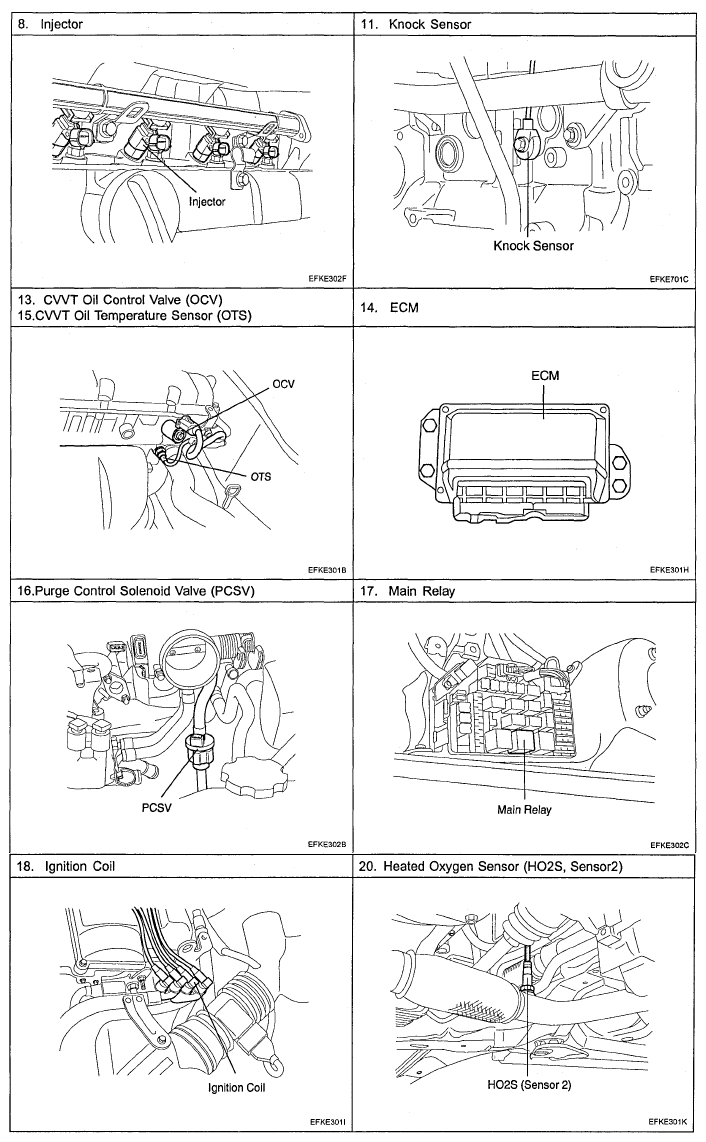

Fig 3: Identifying Engine Control System Components Location (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
