Charging System Test Procedure: Notes

Press ENTER to begin charging system test.

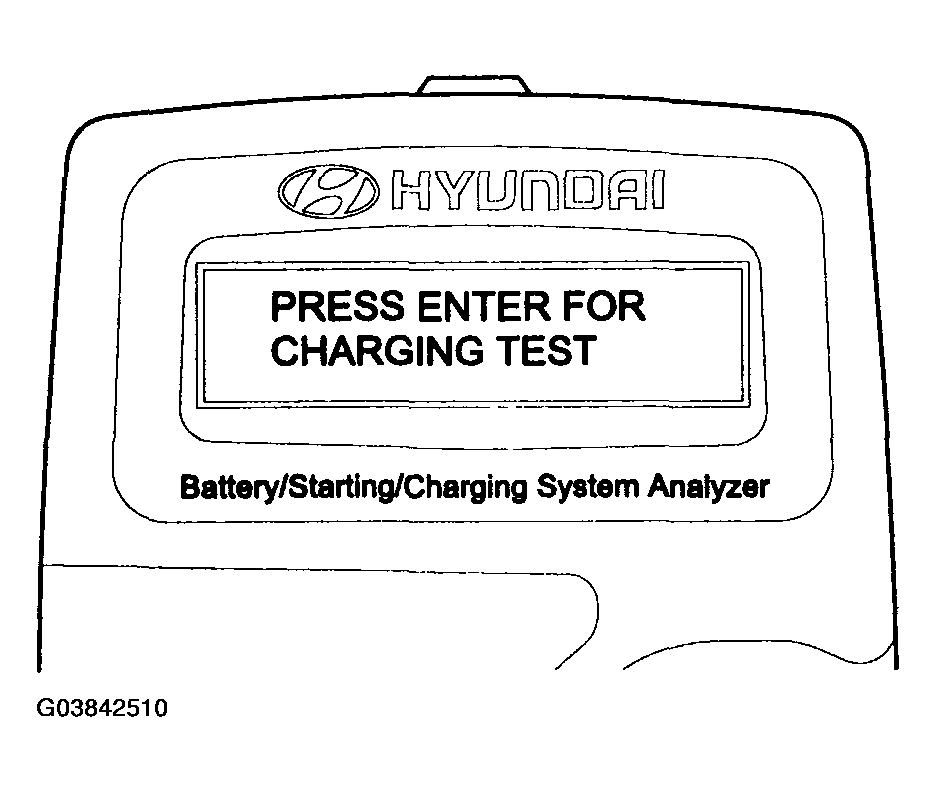

Fig 1: Displaying PRESS ENTER FOR CHARGING TEST Screen
Courtesy of HYUNDAI MOTOR CO.
If ENTER button is pressed, the tester displays the actual voltage of alternator.
Press ENTER to test the charging system.

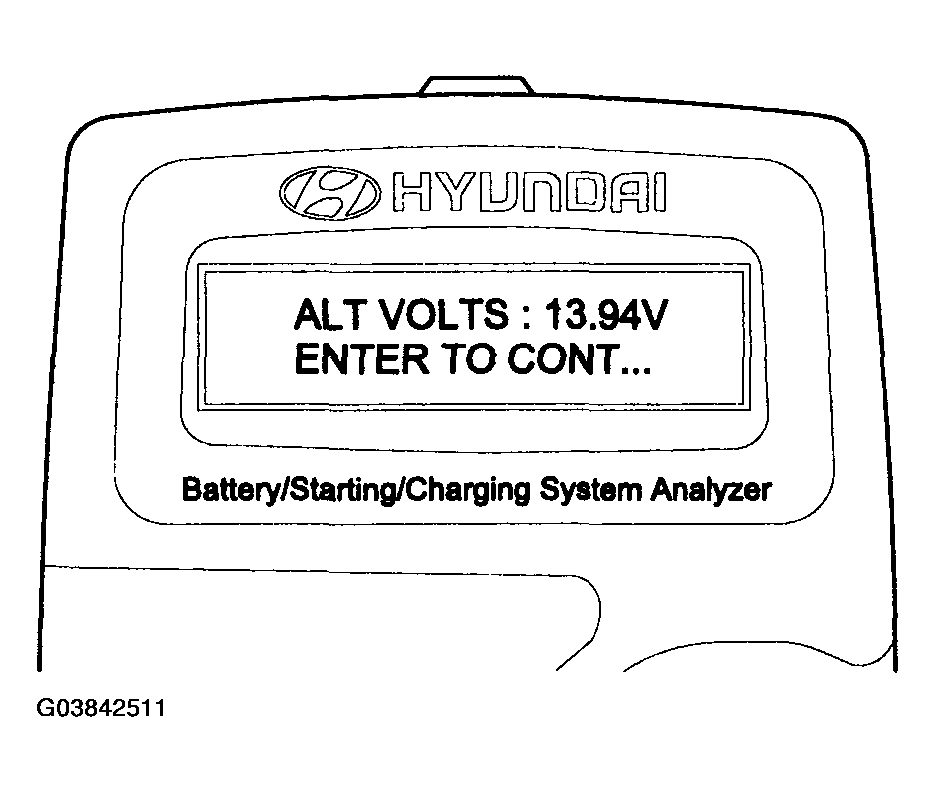

Fig 2: Displaying Alternator Volts
Courtesy of HYUNDAI MOTOR CO.
Turn off all electrical load and rev engine for 5 seconds.

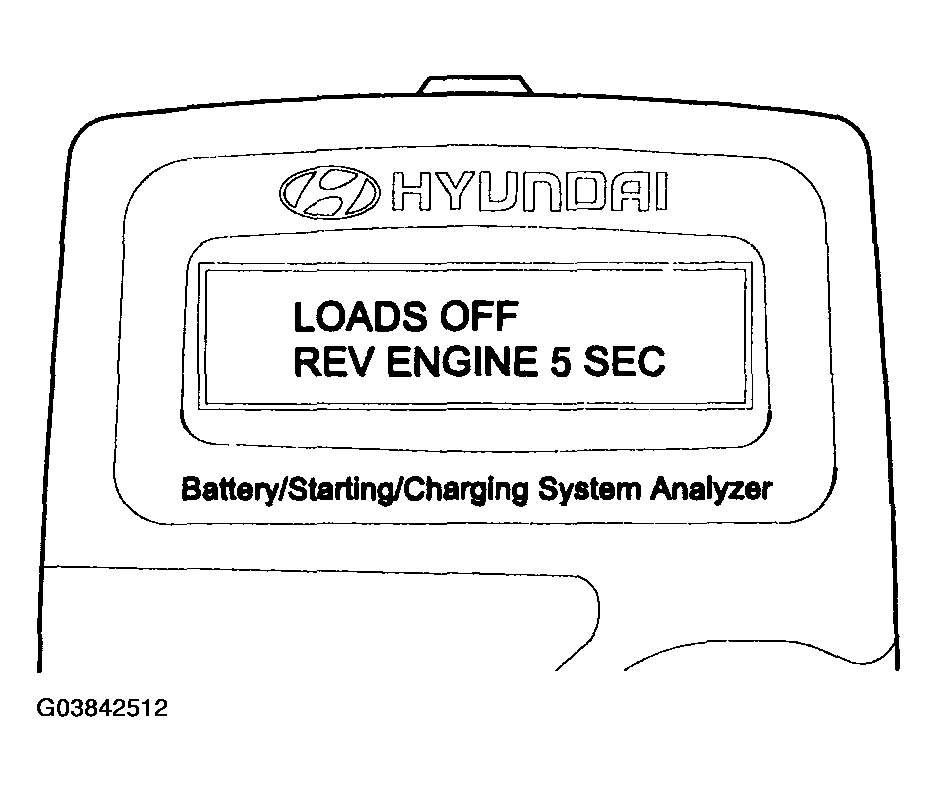

Fig 3: Displaying LOADS OFF REV ENGINE 5 SEC Screen
Courtesy of HYUNDAI MOTOR CO.
Press ENTER.

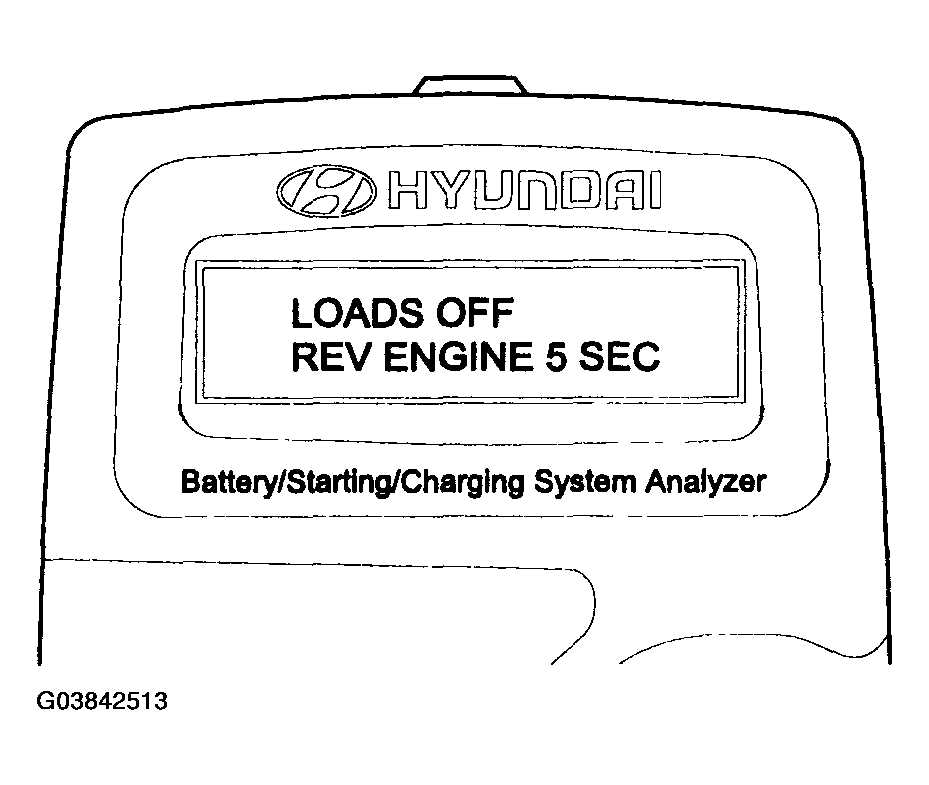

Fig 4: Displaying LOADS OFF REV ENGINE 5 SEC Screen
Courtesy of HYUNDAI MOTOR CO.
The MICRO 570 analyzer charging system output at idle for comparison to other readings.

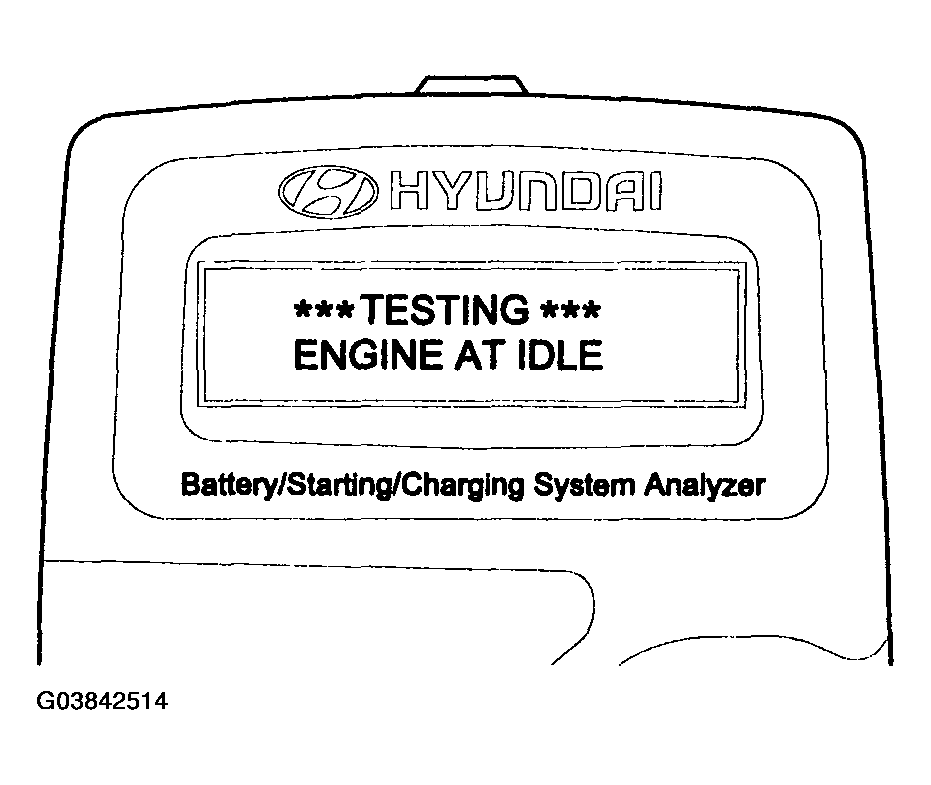

Fig 5: Displaying TESTING IMAGE AT IDLE Screen
Courtesy of HYUNDAI MOTOR CO.
Take relevant action according to the test results by referring to the table below after shutting off the engine and disconnect the tester clamps from the battery.

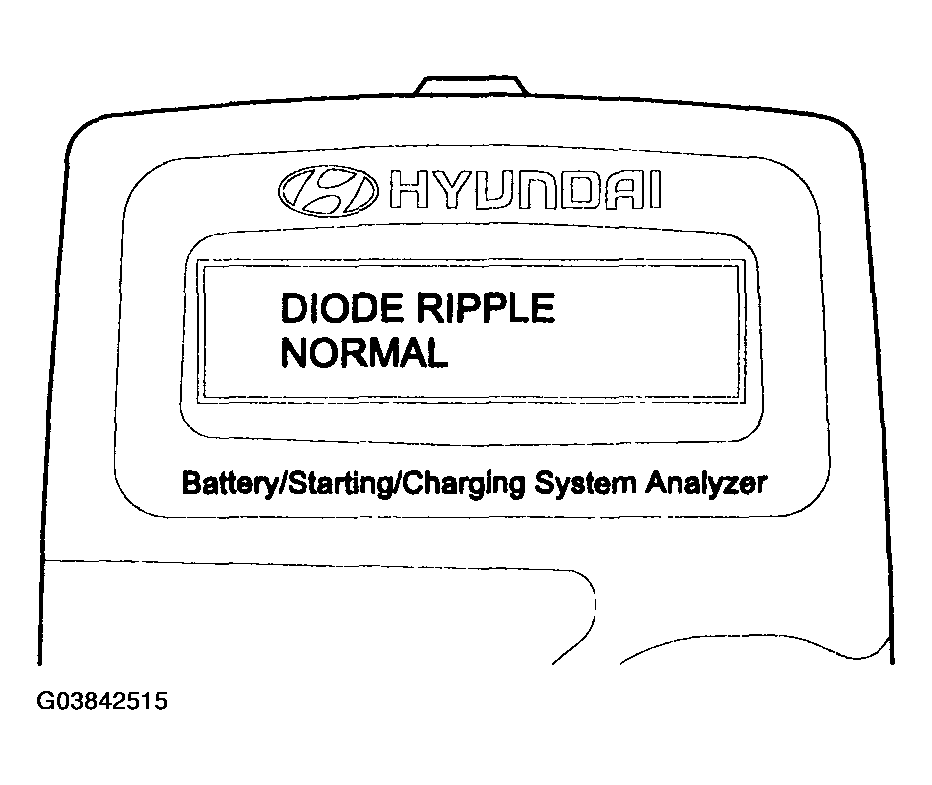

Fig 6: Displaying DIODE RIPPLE NORMAL Screen
Courtesy of HYUNDAI MOTOR CO.
