Circuit Diagram

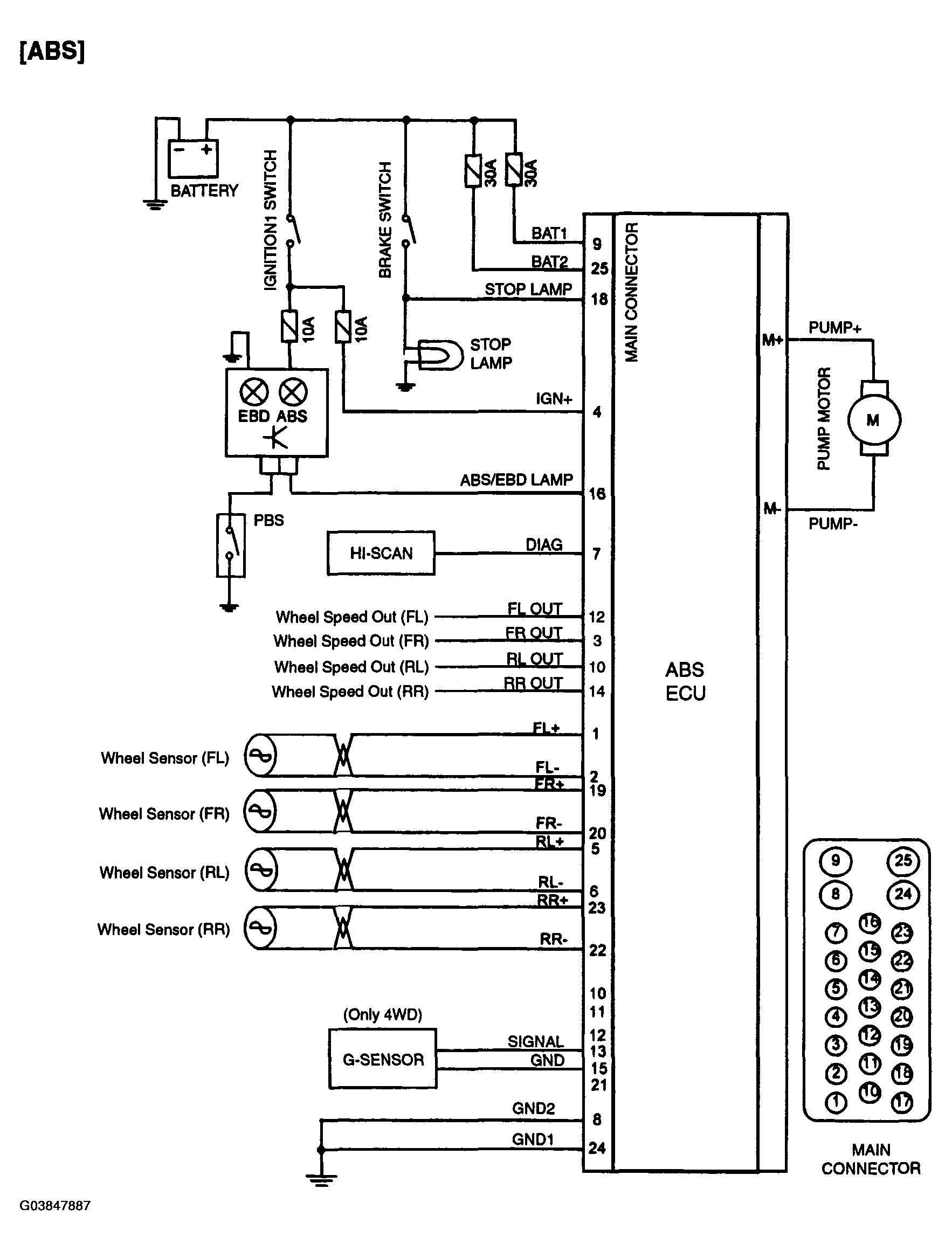

Fig 1: ABS Circuit Diagram
G03847887Courtesy of HYUNDAI MOTOR CO.

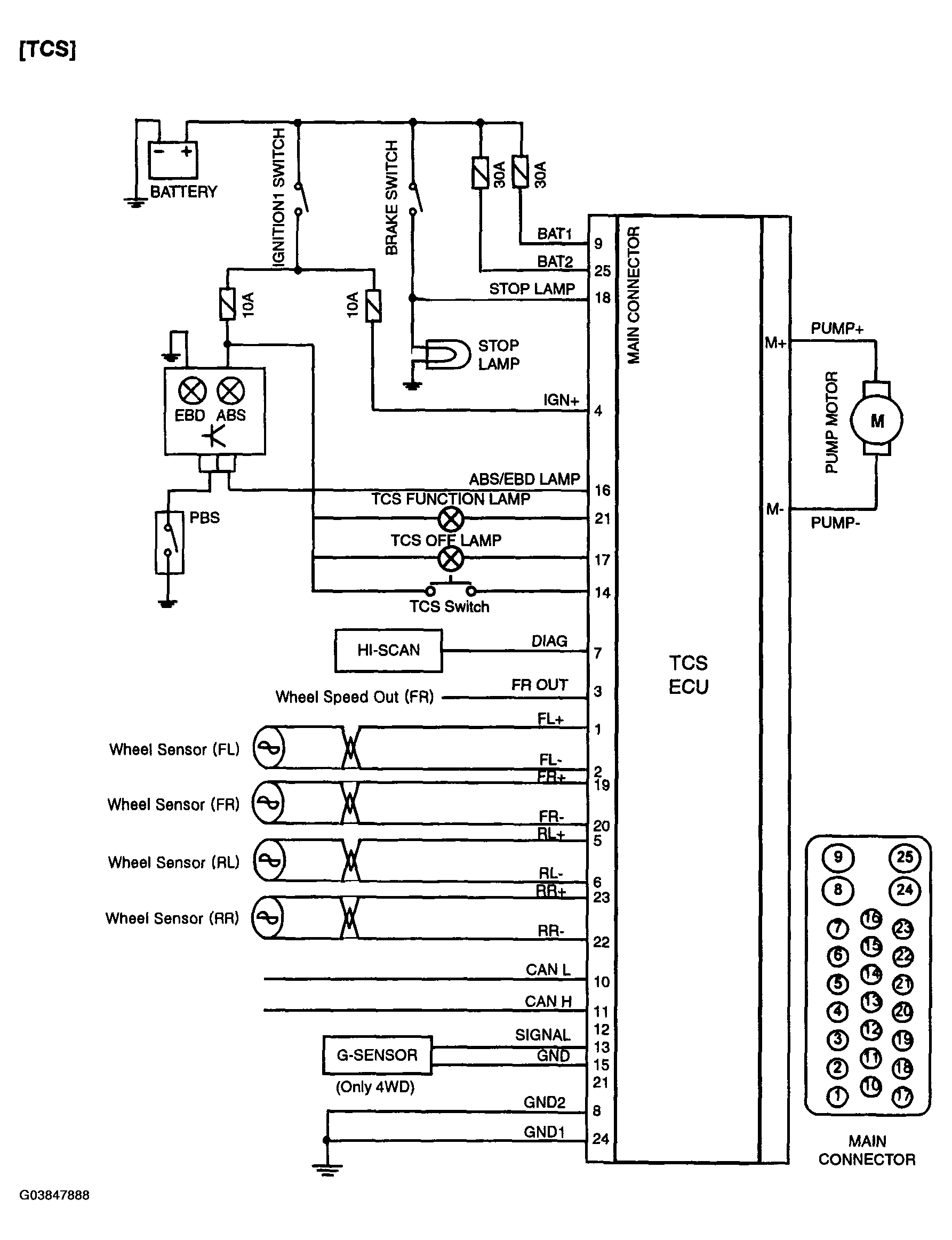

Fig 2: TCS Circuit Diagram
G03847888Courtesy of HYUNDAI MOTOR CO.
