Power Window Switch: Inspection: Notes

  1. Remove the switch from the door trim panel.

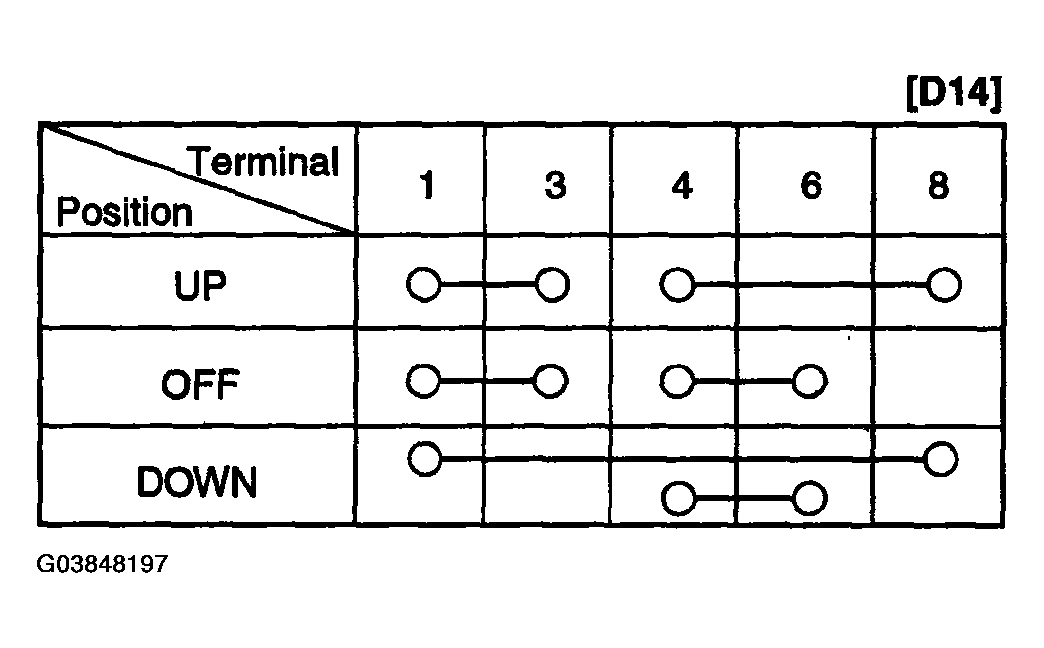

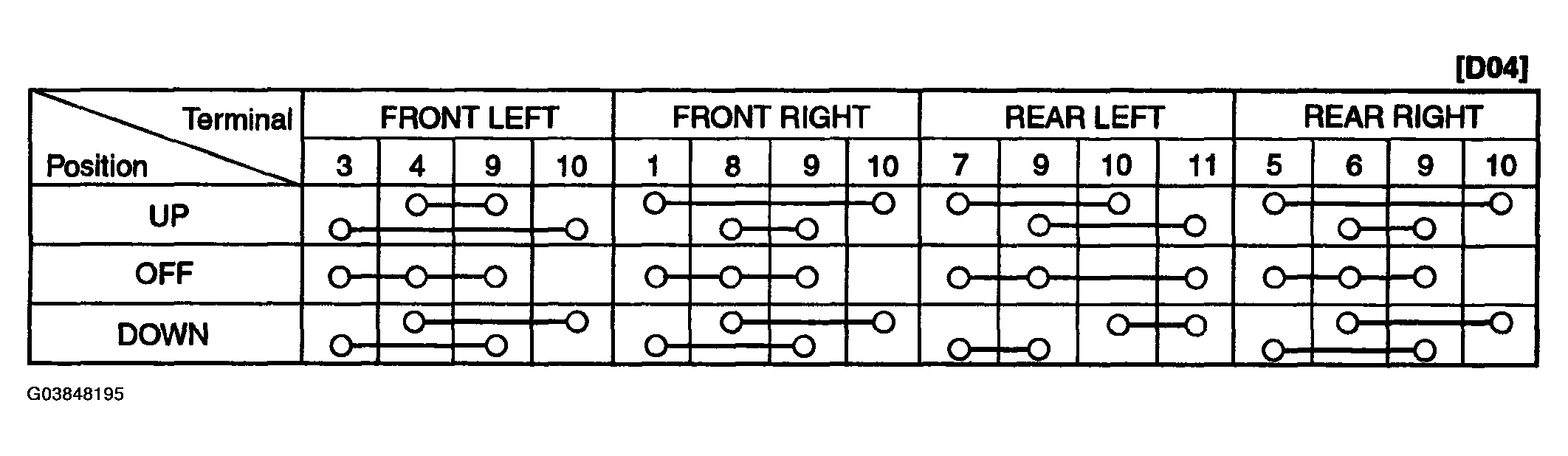

  2. Check for continuity between the terminals. If continuity is not as specified in Figure or Figure , replace the power window switch.
