Accelerator Pedal: Components

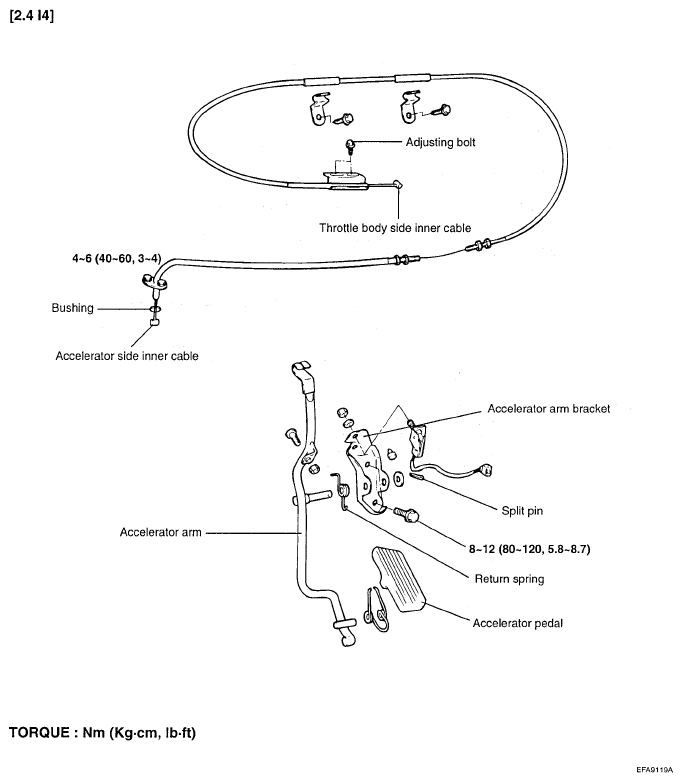

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
G04932027Courtesy of HYUNDAI MOTOR CO.
