Sensor Checking

USING HI-SCAN (PRO)

USING MULTI-METER

1. Remove the engine coolant temperature sensor from the intake manifold.
2. With the temperature sensing portion of the engine coolant temperature sensor immersed in hot engine coolant, check the resistance.
   TEMPERATURE SPECIFICATION



   Temperature [°C(°F)]	Resistance (kΩ)	Voltage (V)
   0 (32)	5.9	3.4 ~ 3.6
   20 (68)	2.5	2.5 ~ 2.7
   40 (104)	1.1	1.5 ~ 1.7
   80 (176)	0.3	0.5 ~ 0.7

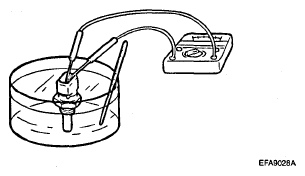

   Fig 1: Checking Engine Coolant Temperature Sensor

   Courtesy of HYUNDAI MOTOR CO.
3. If the resistance deviates from the standard value greatly, replace the sensor.

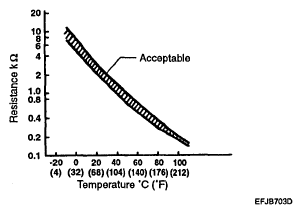

Fig 2: Engine Coolant Temperature Graph

Courtesy of HYUNDAI MOTOR CO.

HARNESS INSPECTION PROCEDURES

Refer to "DTC P0117 ENGINE COOLANT TEMPERATURE CIRCUIT LOW INPUT , DTC P0118 ENGINE COOLANT TEMPERATURE CIRCUIT HIGH INPUT " DTC inspection procedures.
