Code P0885 A/T Control relay system

DIAGNOSTIC TROUBLE CODE NO. P0885 - A/T CONTROL RELAY SYSTEM

Code P0885 A/T Control relay system	Probable cause
If the relay voltage is less than 7V after the ignition switch has been turned to ON, it is judged that there is an open circuit or a short-circuit in the A/T control relay ground and diagnostic trouble code P0885 is output. The transaxle is locked into 3rd gear as a fail-safe measure.	Malfunction of the A/T control relay Malfunction of connector Malfunction of the TCM

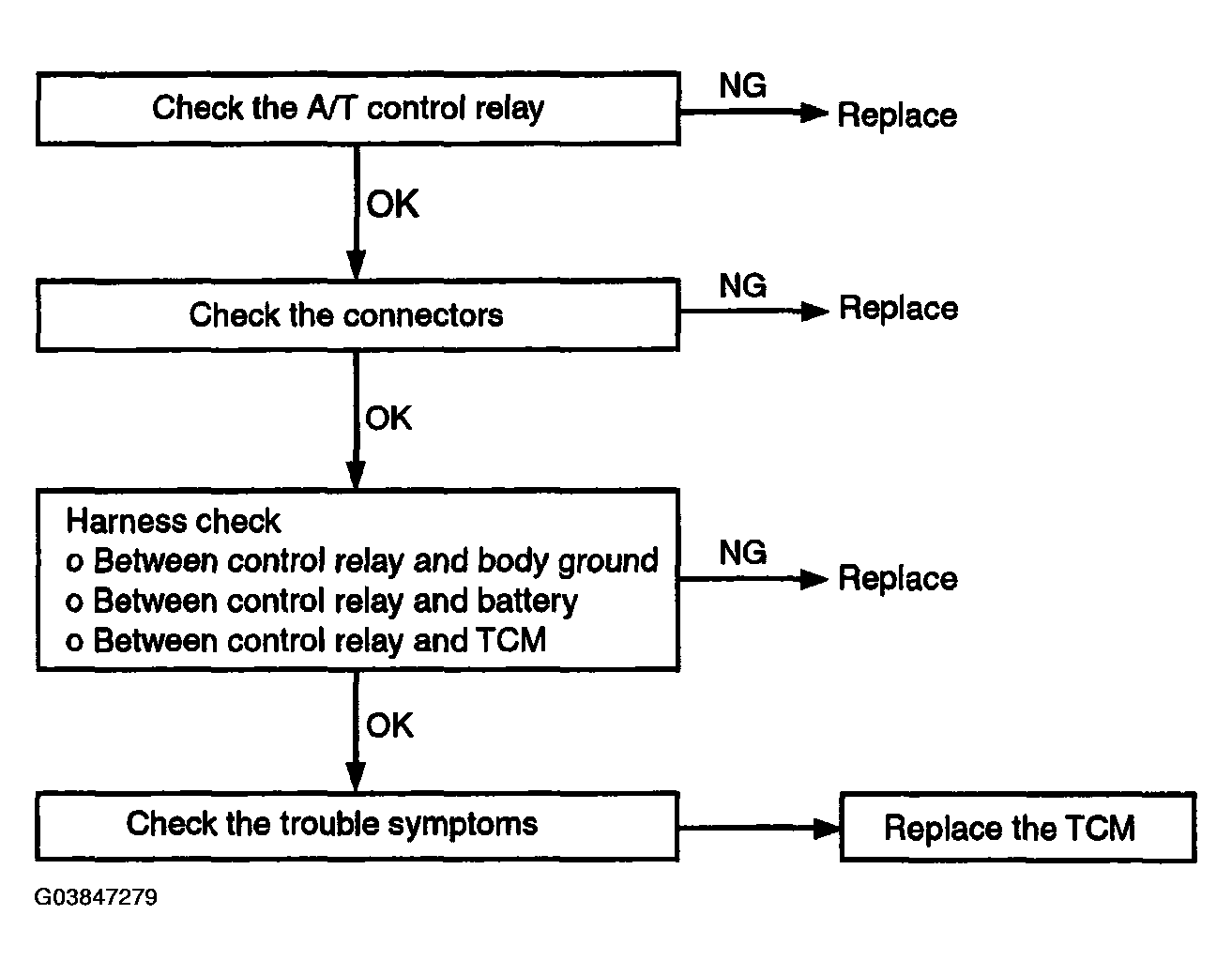

Fig 1: Diagnostic Trouble Code Flow Chart - P0885

Courtesy of HYUNDAI MOTOR CO.
