Coupling Assembly: Components

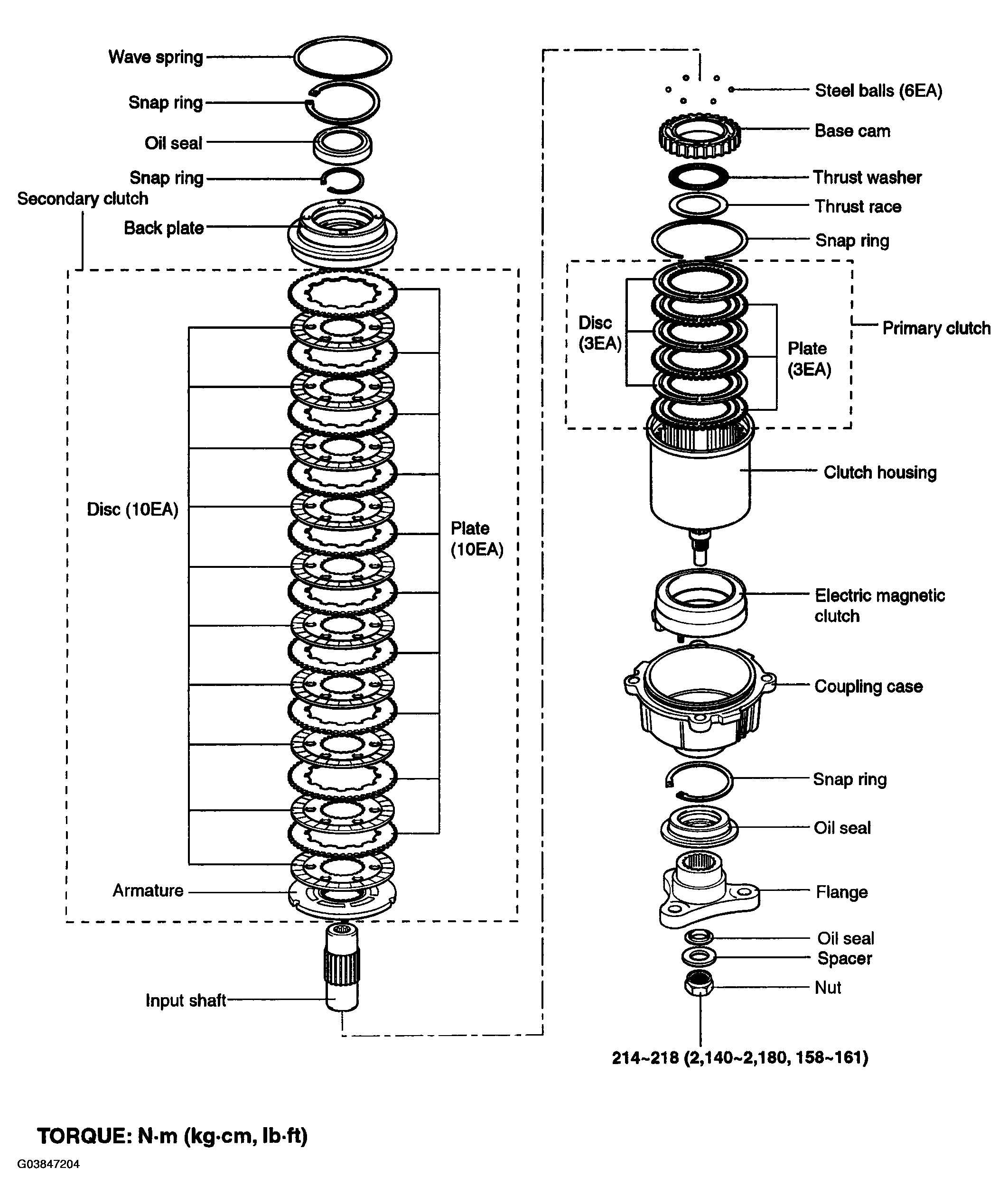

Fig 1: Exploded View Of Coupling Assembly And Torque Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
