System Schematics: Notes

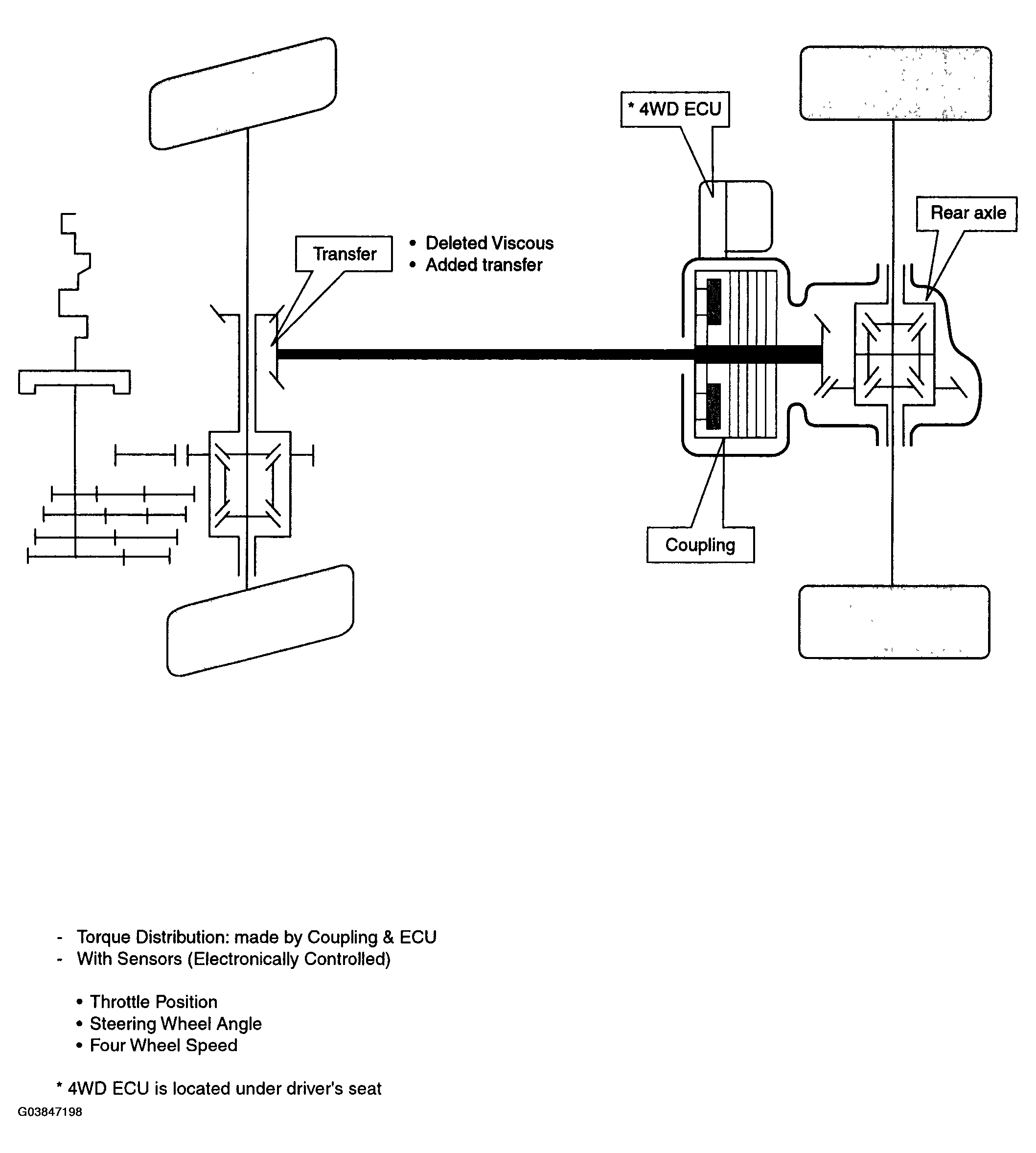

Fig 1: Coupling Assembly - Schematics Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
