Sectional View

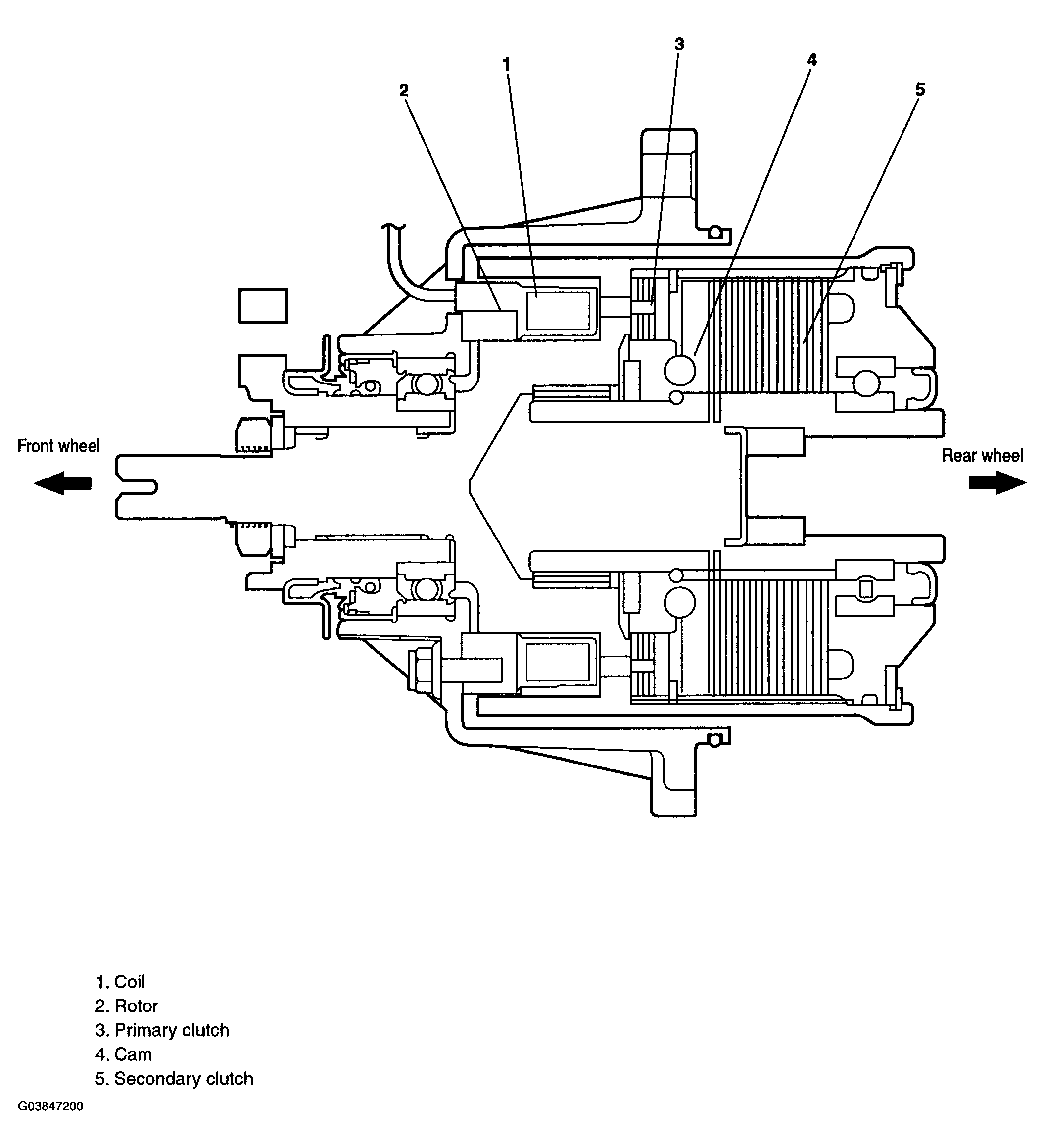

Fig 1: Coupling Assembly - Sectional View
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
