Scan Tool Testing and Procedures

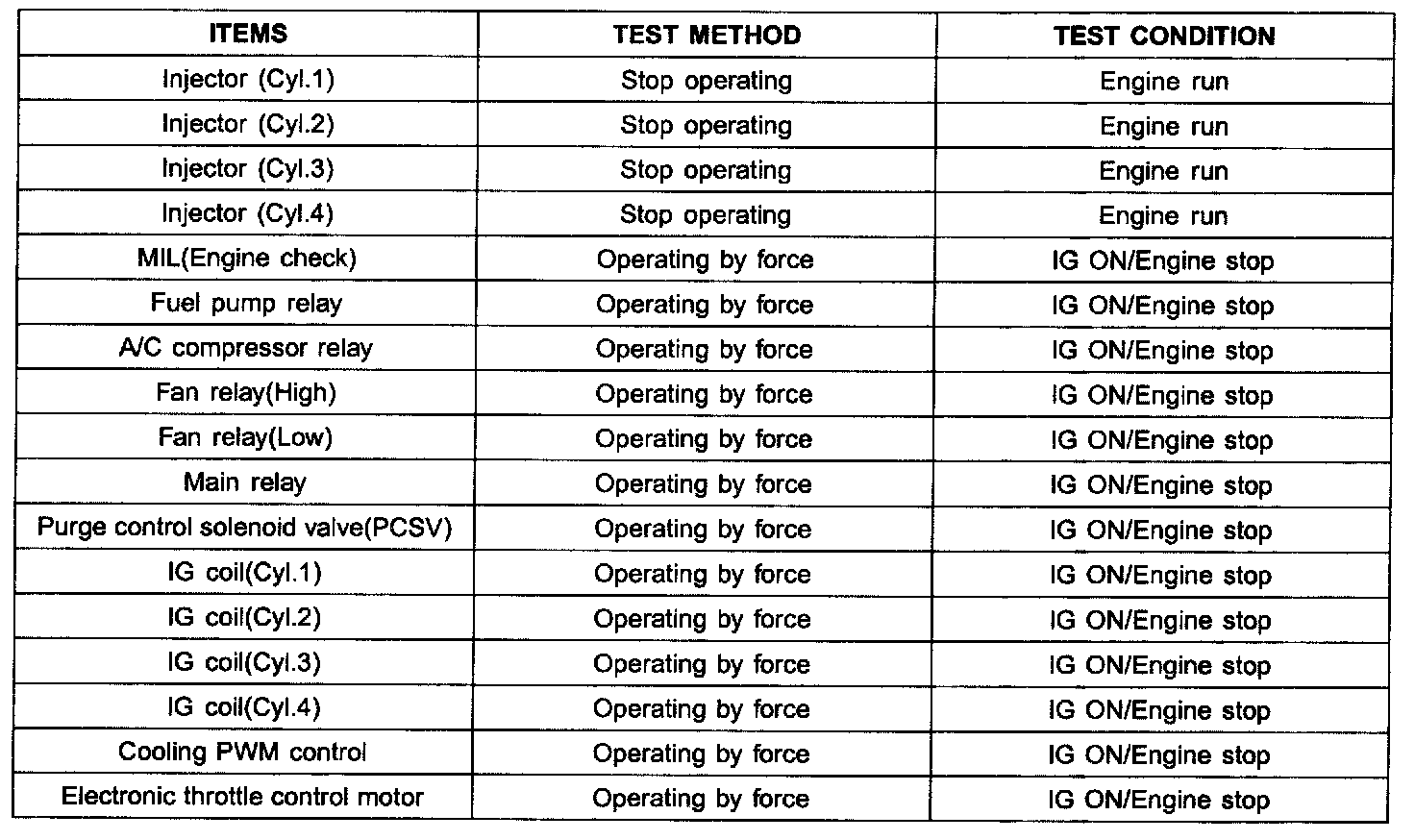

ACTUATOR TEST

The ACTUATOR TEST mode is to check if the relay, valve, actuator and so on are operated normally.
Before removing parts to inspect or replace them, performing the Actuator test is recommanded.
Perform the ACTUATOR TEST according to the below procedures.




1. Warm up the engine.
2. Turn the ignition switch OFF.
3. Connect the Hi-Scan(or Pro) to the DLC connector.
4. Turn the ignition switch ON.
5. According to the display on tester, select the ACTUATOR TEST mode and perform it.
