Transmission Position Sensor/Switch: Specifications

Inhibitor Switch
- Type: Rotary contact type
- Range of temperature: -40°C -145°C (-40°F - 293°F)

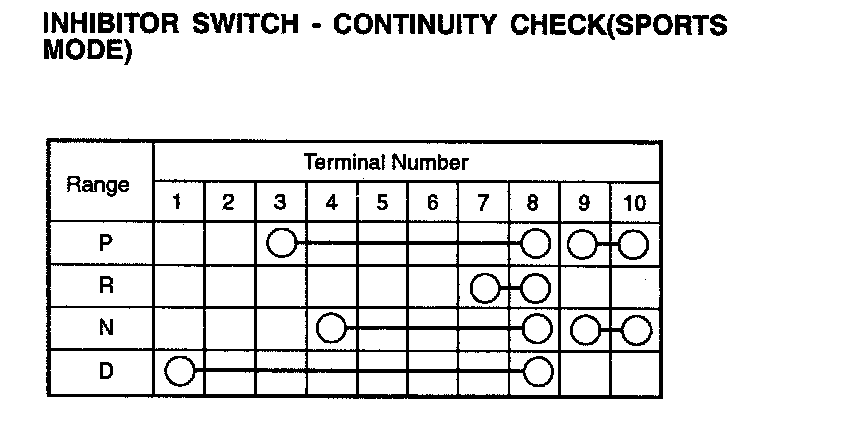

INHIBITOR SWITCH - CONTINUITY CHECK (SPORTS MODE)
