Audio Assembly Replacement

  1. Remove the center facia panel (See CENTER FACIA PANEL REPLACEMENT ).
  2. Loosen the screws.

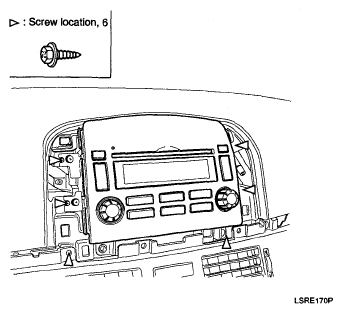

    Fig 1: Identifying Center Facia Panel Screw Location
    G04892883Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the audio connector (A) and antenna cable (B), then remove the audio assembly (C).
    Fig 2: Identifying Audio Connector And Antenna Cable
    G04892884Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
