Components Location

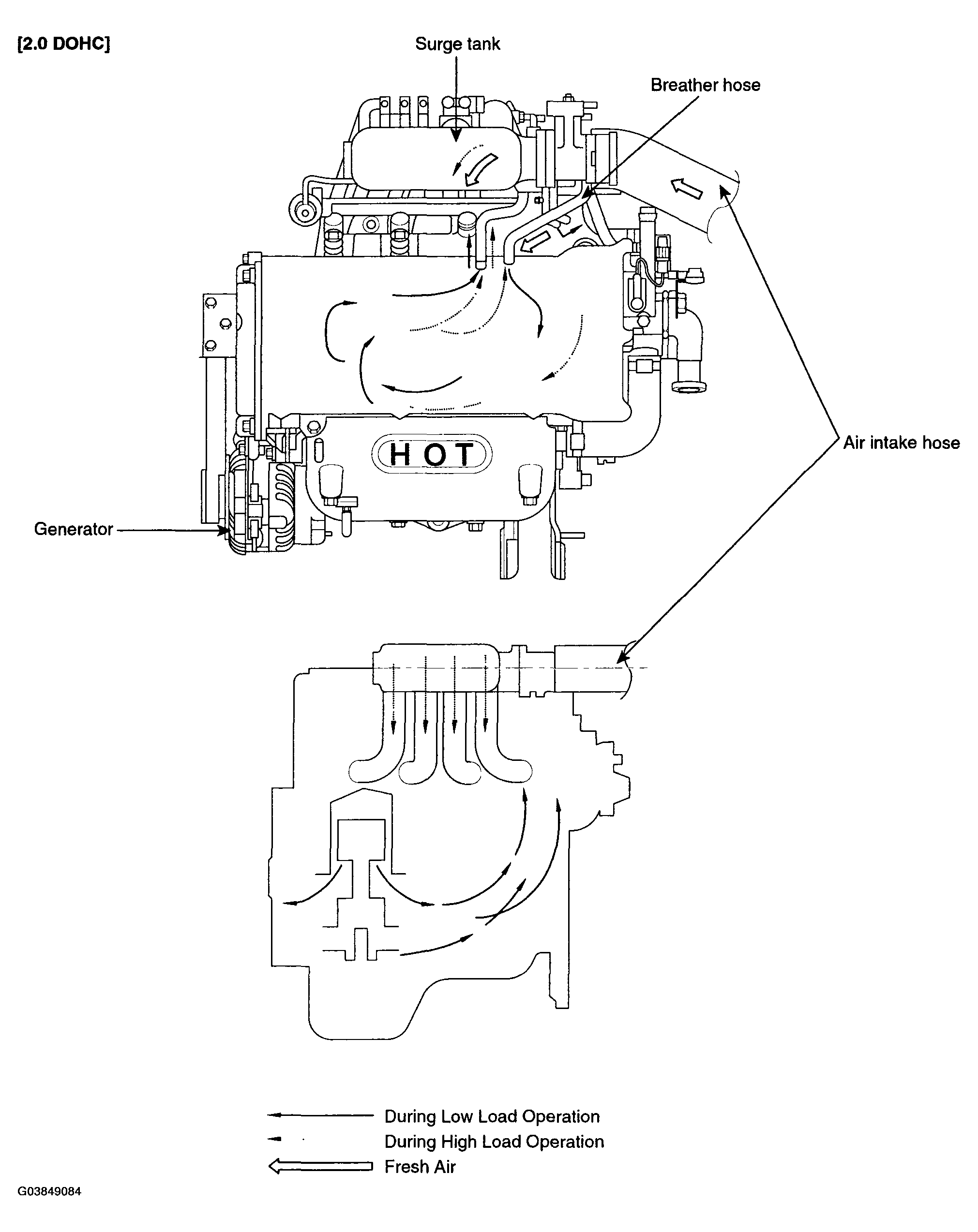

Fig 1: Identifying Components Location Crankcase Emission Control System (2.0LDOHC)
Courtesy of HYUNDAI MOTOR CO.

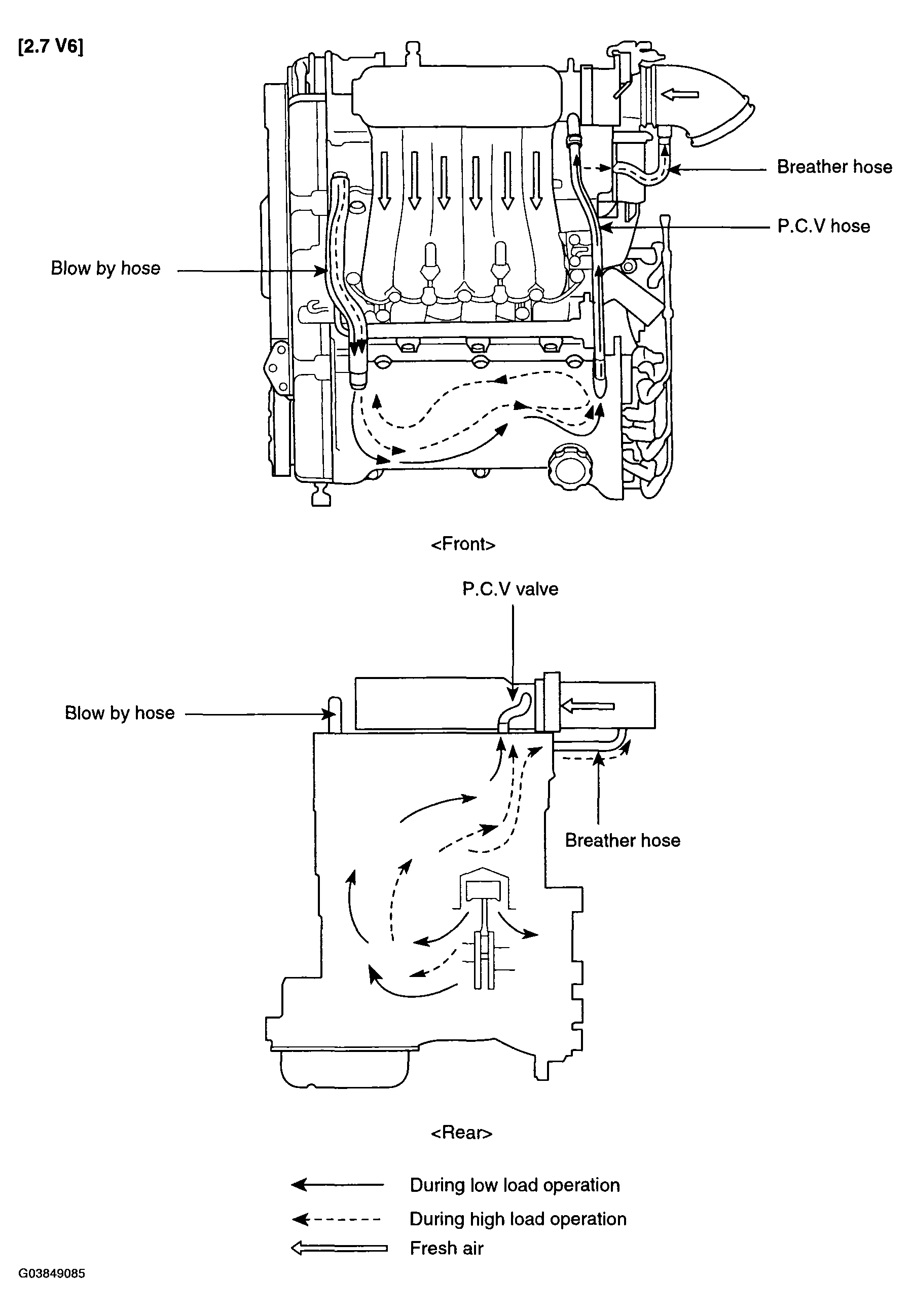

Fig 2: Identifying Components Location Crankcase Emission Control System (2.7L V6)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
