Rear Wheel Alignment

REAR WHEEL ALIGNMENT





TOE-IN





NOTE:

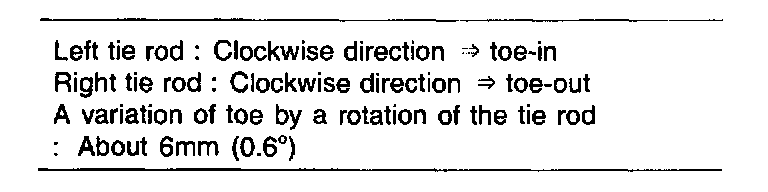

^ Adjust the toe-in by fuming the tie rod end of the rear suspension arm.
^ The cam bolt should be adjusted to a maximum of 90° leg or right from the center position.

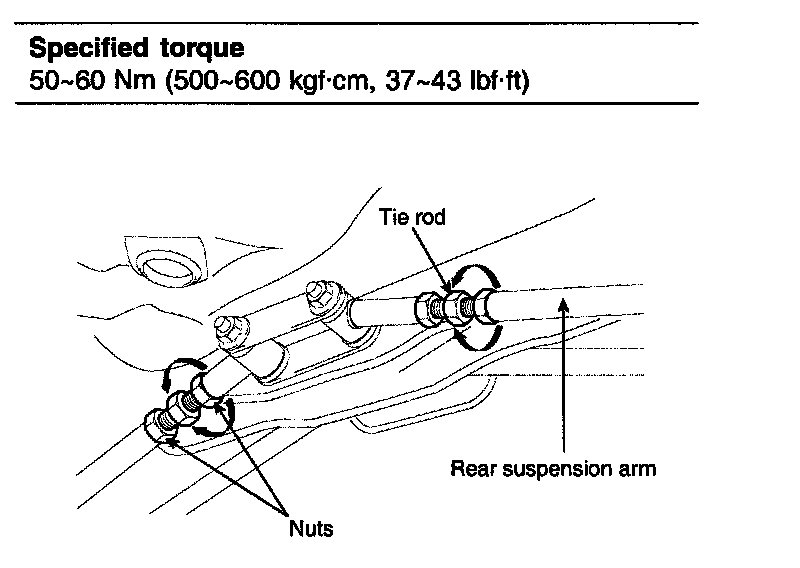

CAUTION: After adjusting the tie rod, tighten both nuts to the specified torque.
