Supplemental Restraints System Control Module (SRSCM)
>>
SRS Control Module
>>
System Component And Layout
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Component And Layout

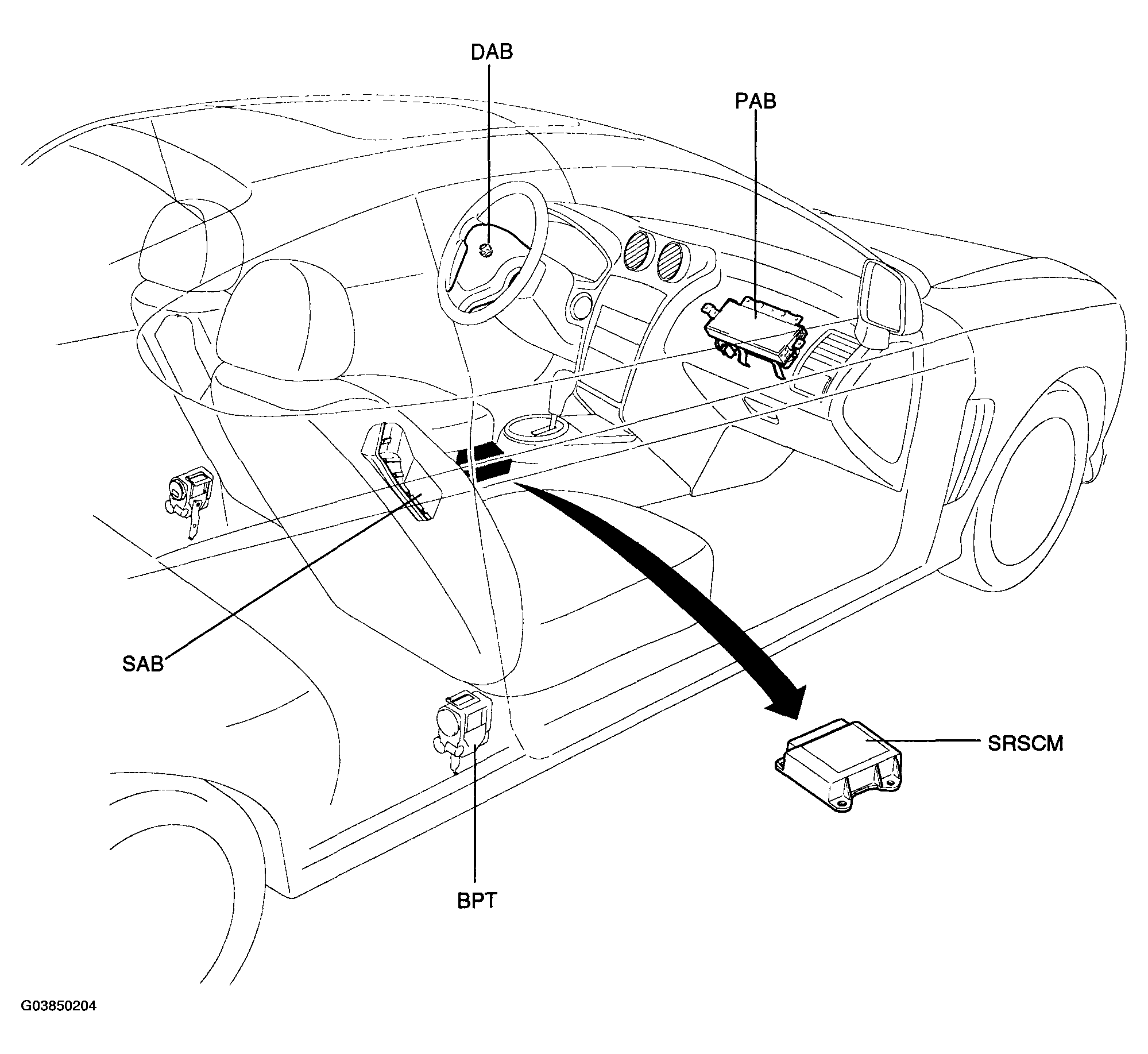

Fig 1: Identifying SRSCM System Component & Layout
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
