Intake Manifold

Intake Manifold

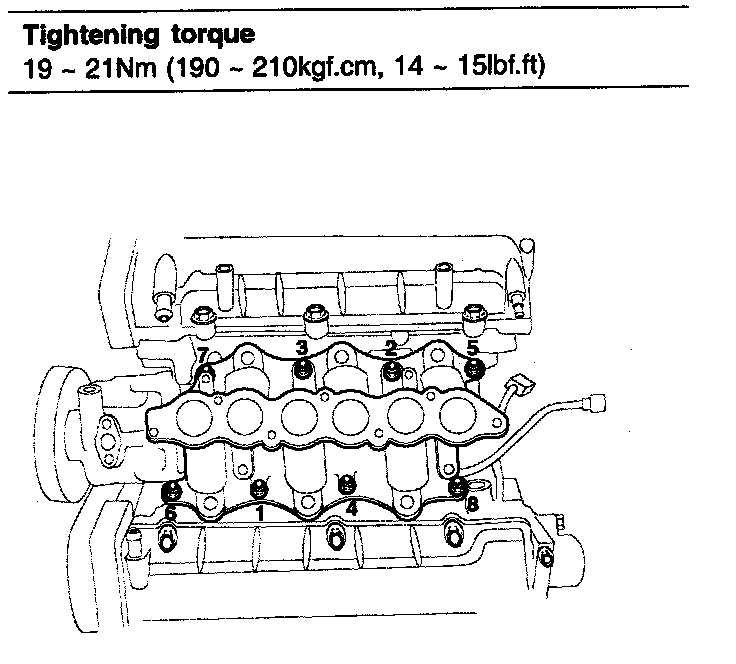

Install the intake manifold and gasket.
Tightening torque 19 - 21 Nm (190 - 210 kgf-cm, 14 - 15 ft. lbs.)
