Components Location

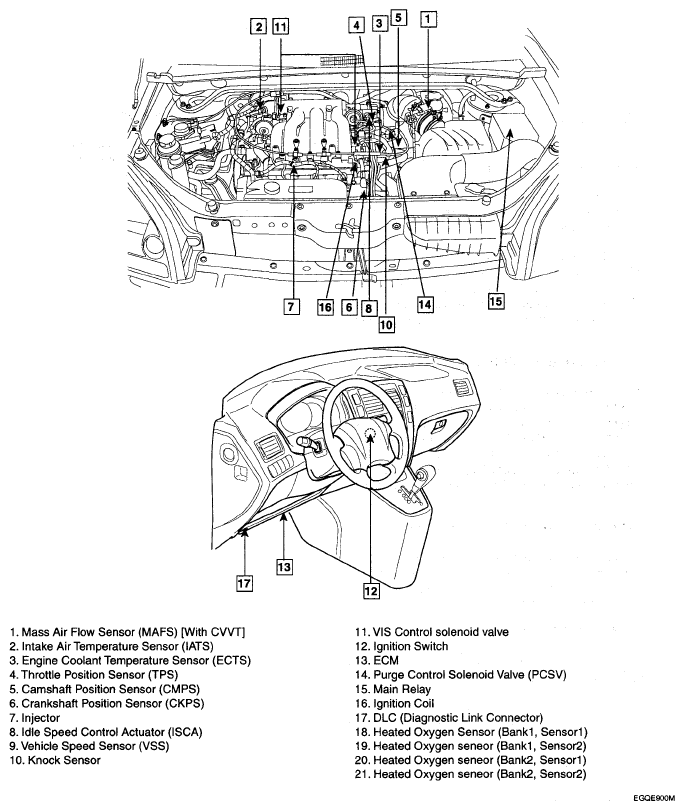

Fig 1: Identifying Fuel System Components (1 Of 4)
G04810134Courtesy of HYUNDAI MOTOR CO.

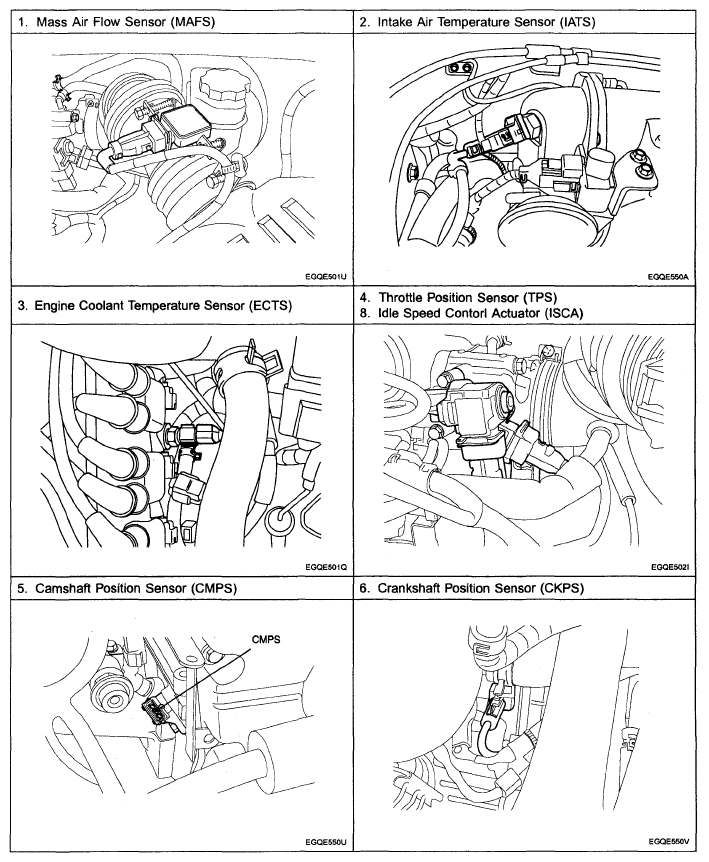

Fig 2: Identifying Fuel System Components (2 Of 4)
G04810135Courtesy of HYUNDAI MOTOR CO.

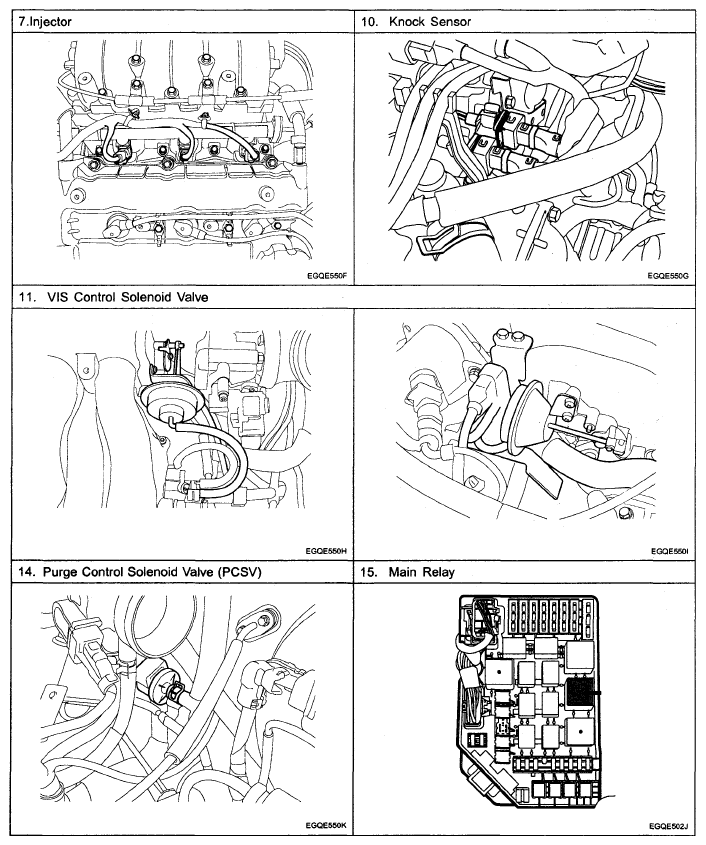

Fig 3: Identifying Fuel System Components (3 Of 4)
G04810136Courtesy of HYUNDAI MOTOR CO.

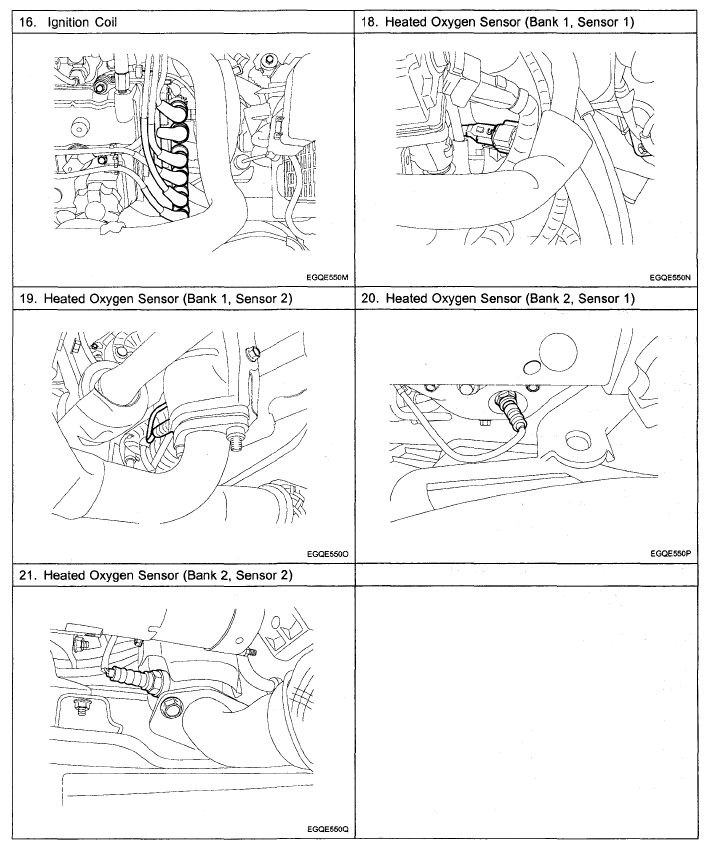

Fig 4: Identifying Fuel System Components (4 Of 4)
G04810137Courtesy of HYUNDAI MOTOR CO.
