Fuse Block

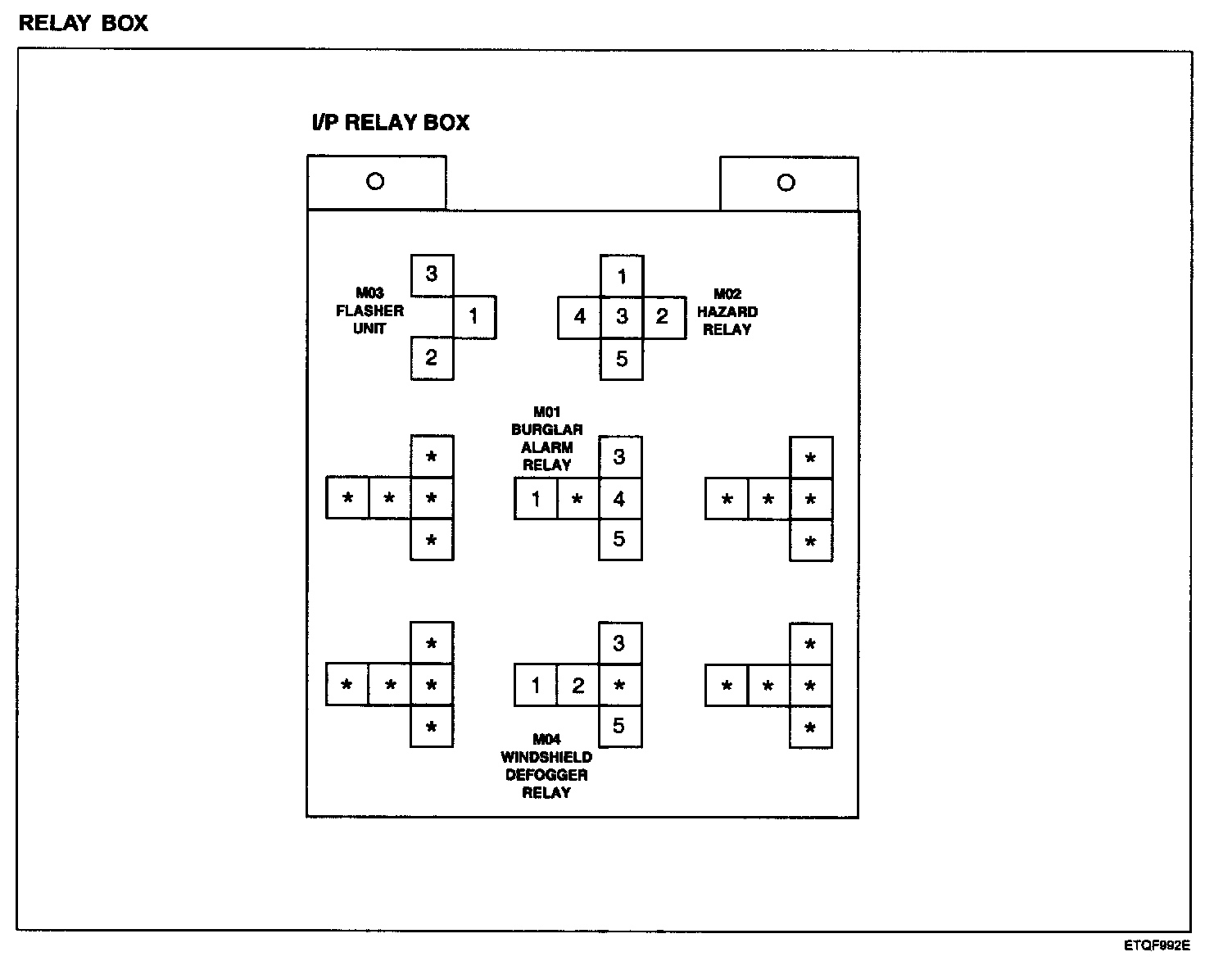

Relay Box (Passenger Compartment) Components Part 1:

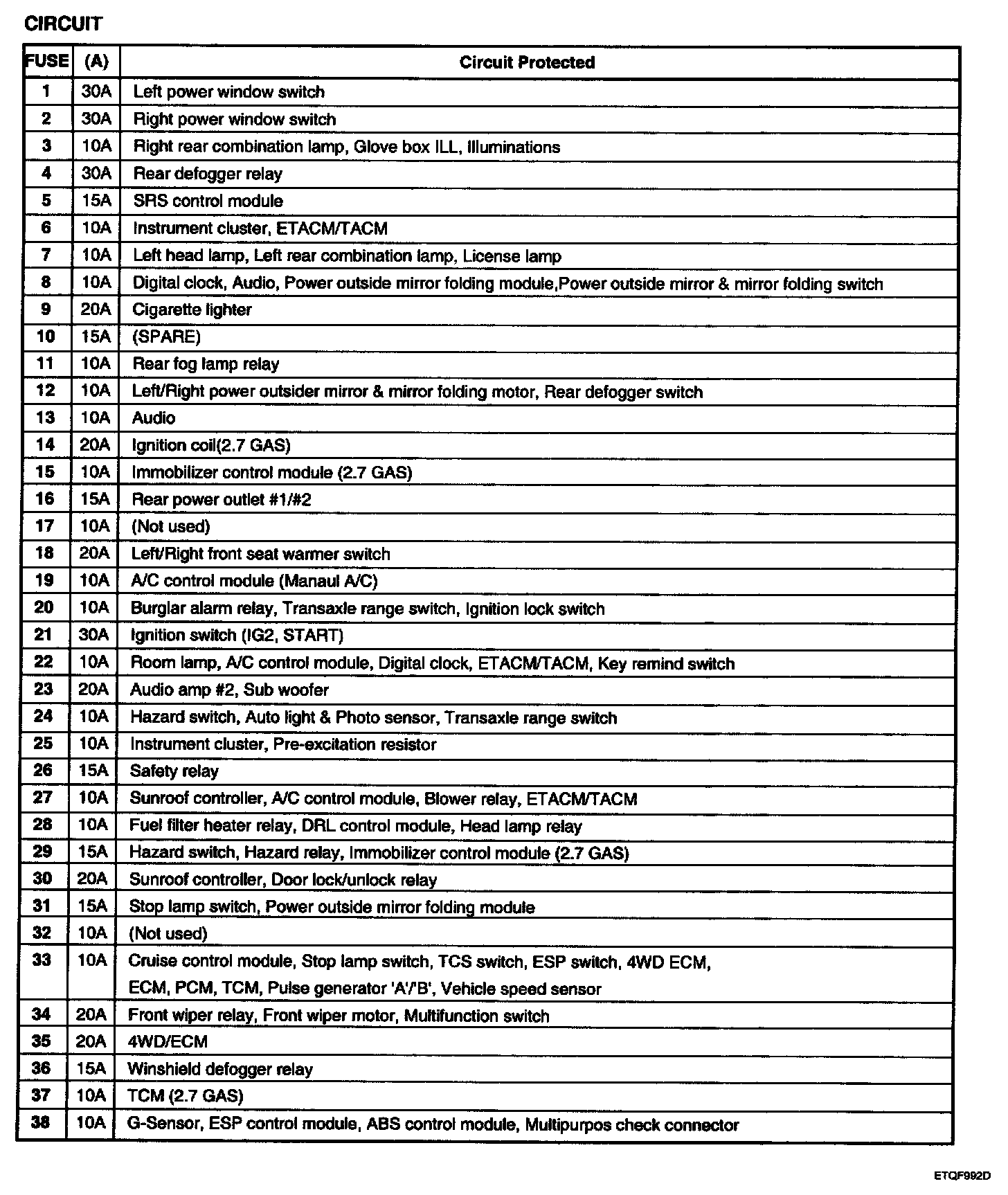

Relay Box (Passenger Compartment) Components Part 2:

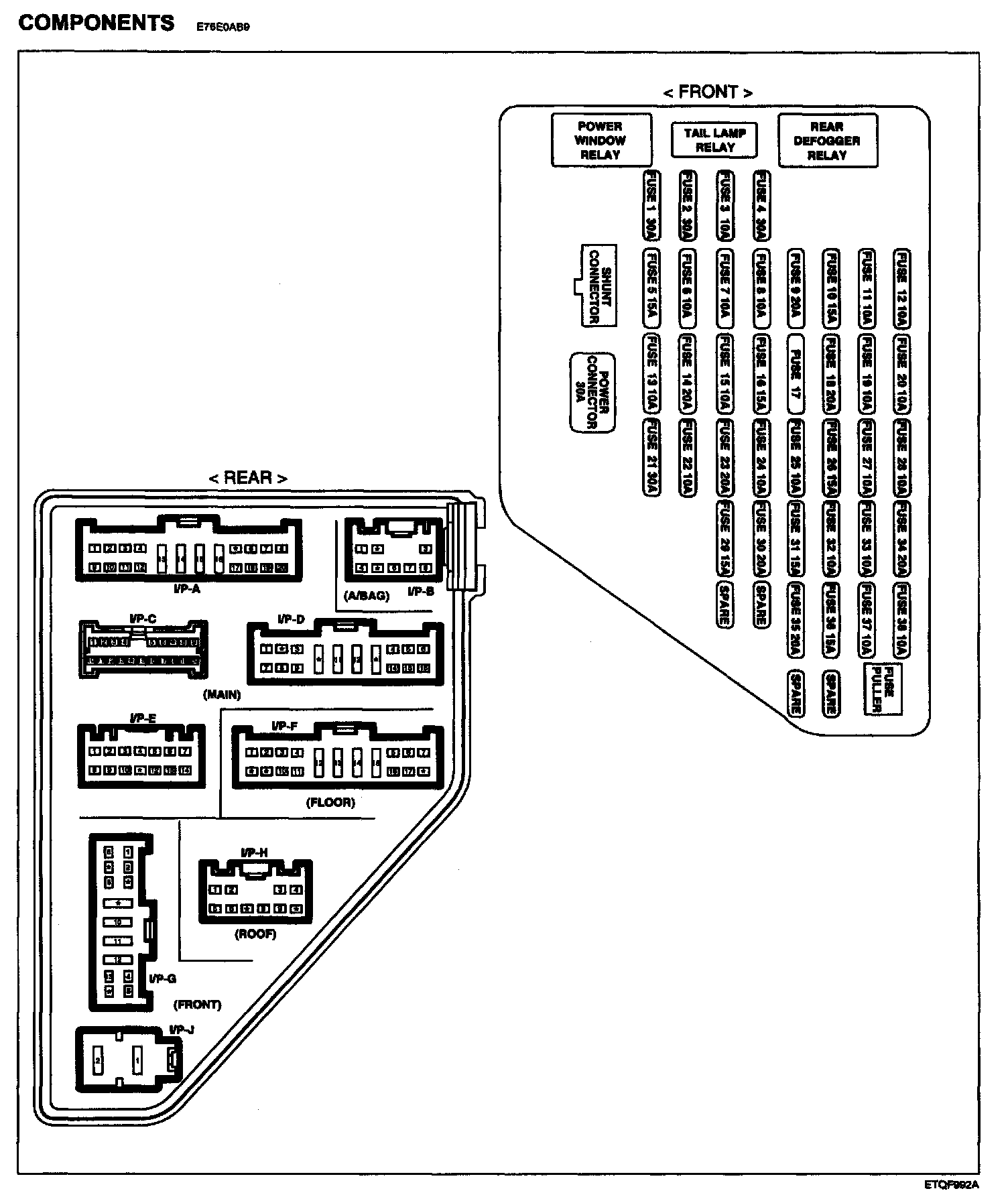

Relay Box (passenger Compartment) Components Part 3:
