Programming and Relearning

SENSOR INITIATING PROCEDURE

NOTE: The sensors default state will be Storage Auto (High Line).

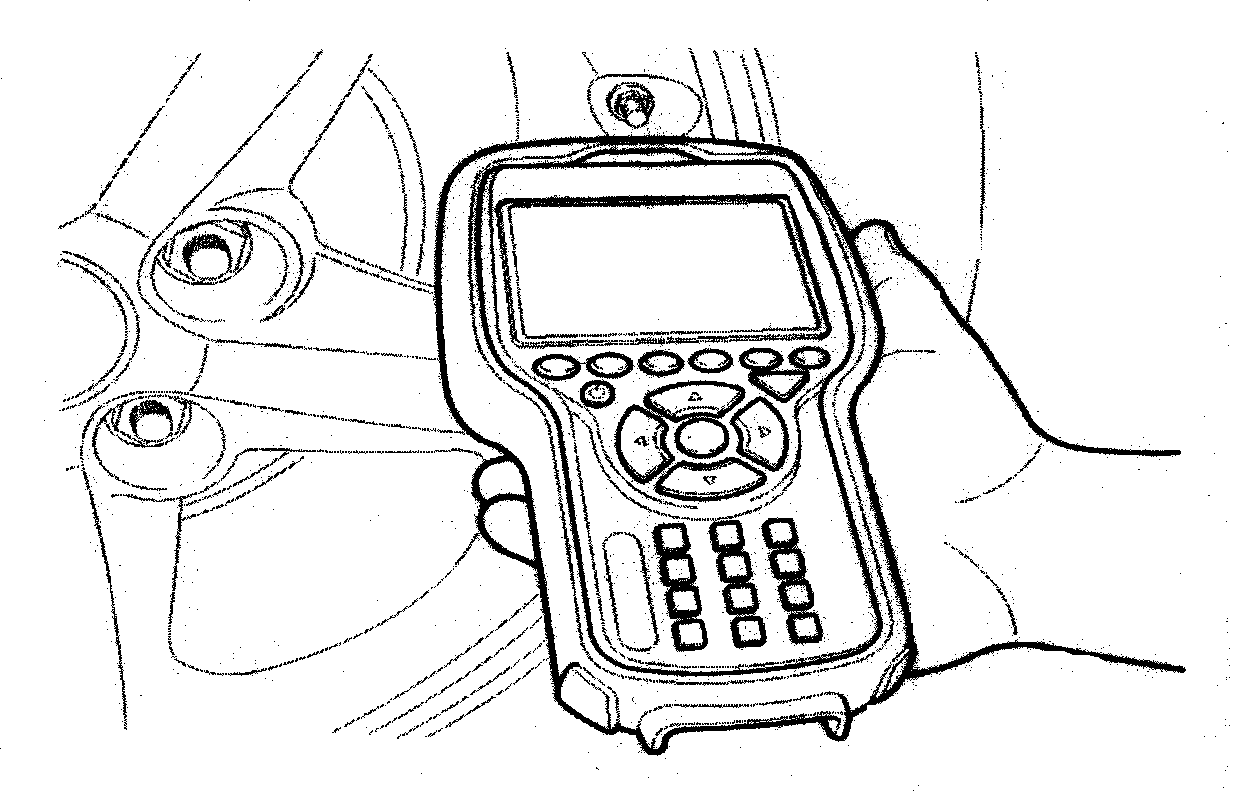

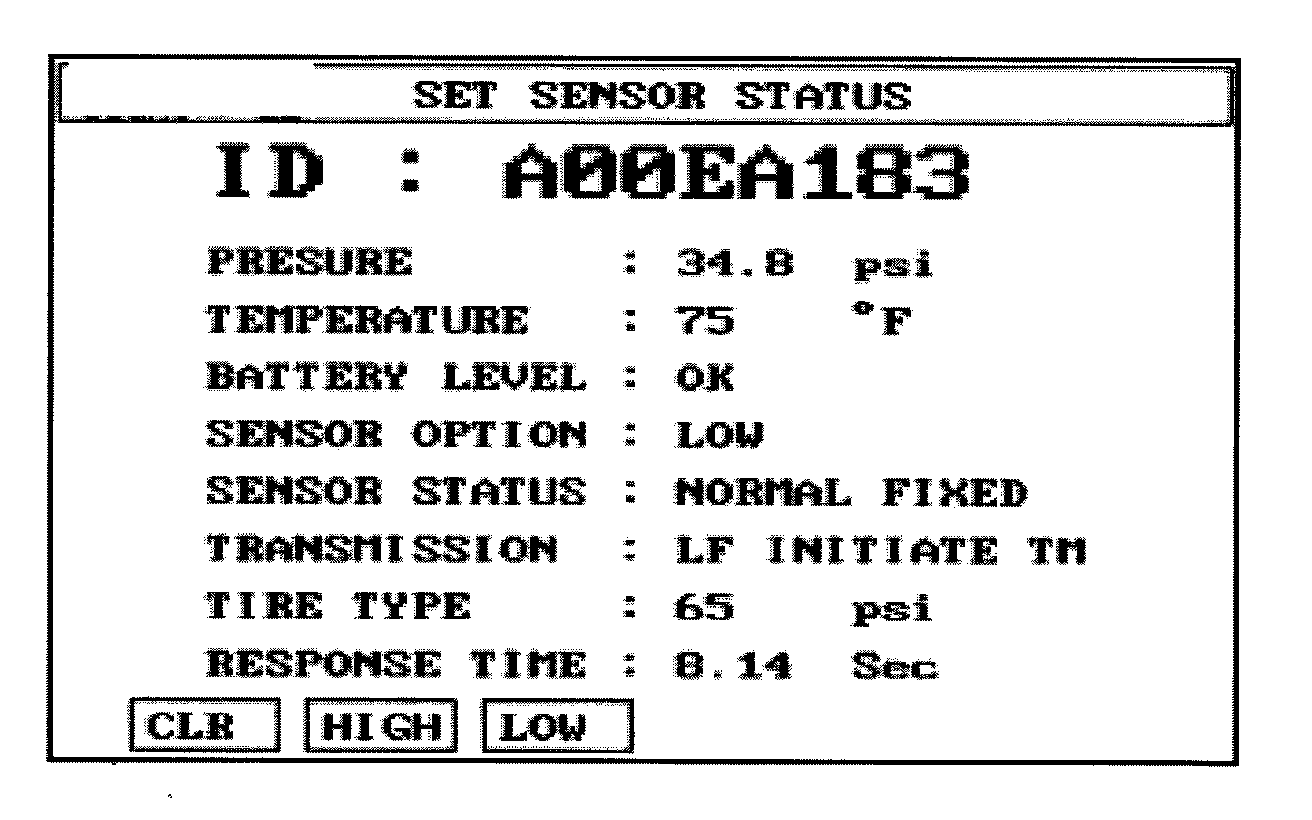

1. Change the sensor mode to Normal Fixed Base (Low Line) with the "TPMS exciter".

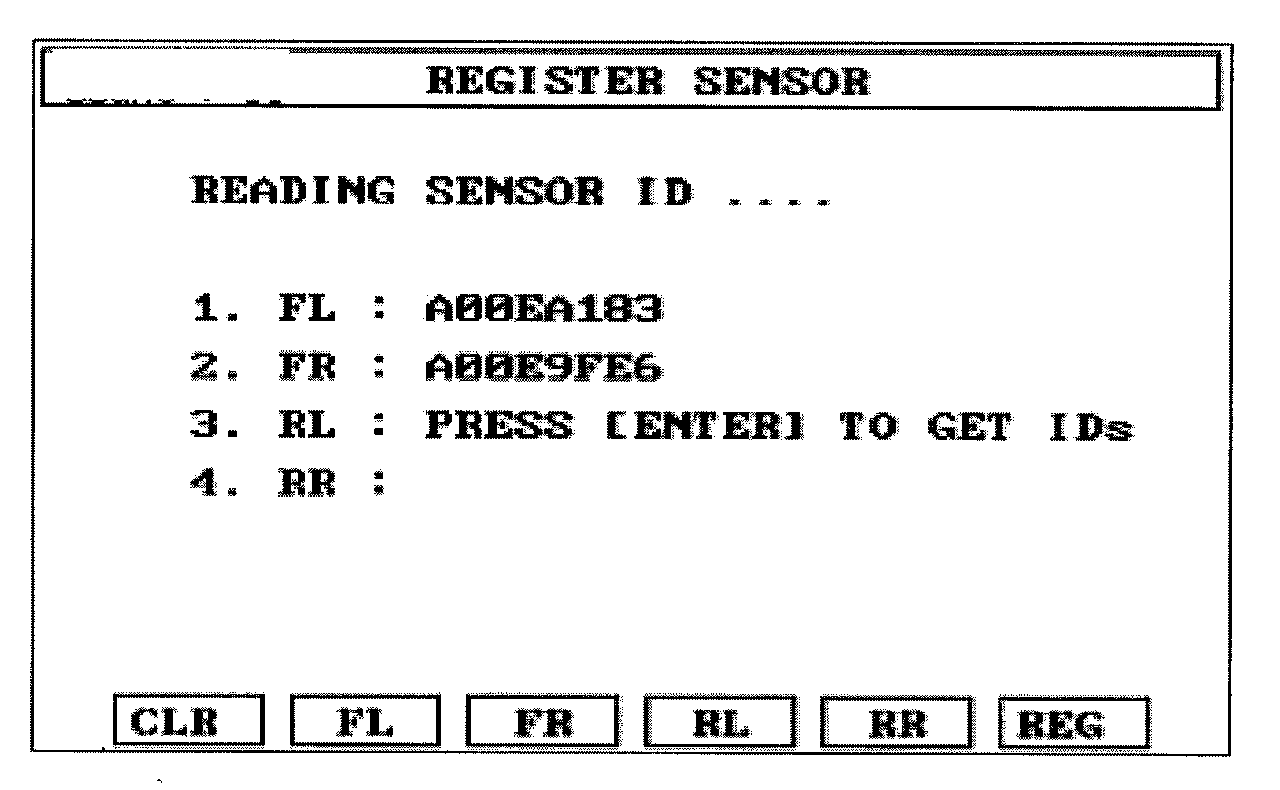

2. Read the four sensor's ids starting with sensor 1(1 normally front left, 2 front right, 3 rear left, 4 rear right).

NOTE: Note that sensors which were already configured as Base (Low Line) will take longer to read.

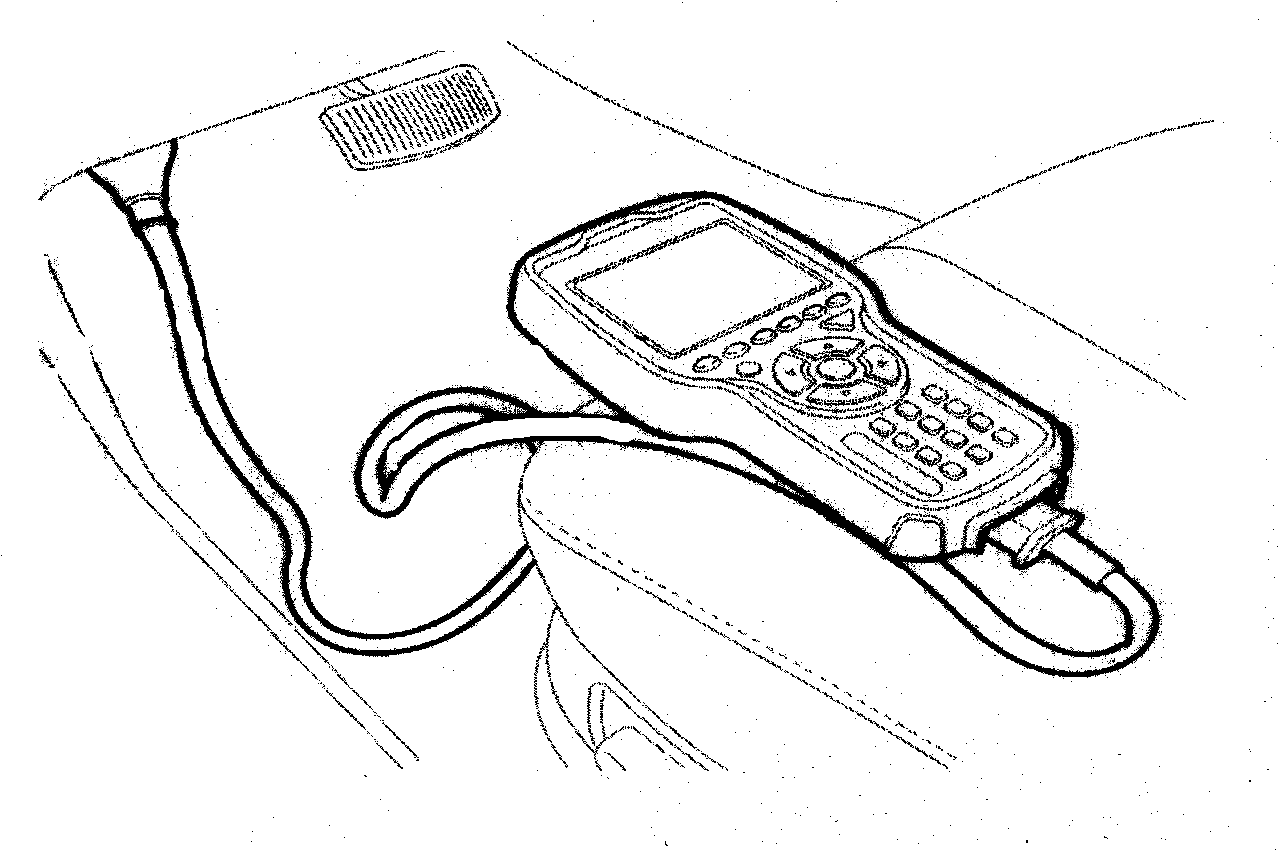

3. Connect TPMS exciter to the diagnostic connector.

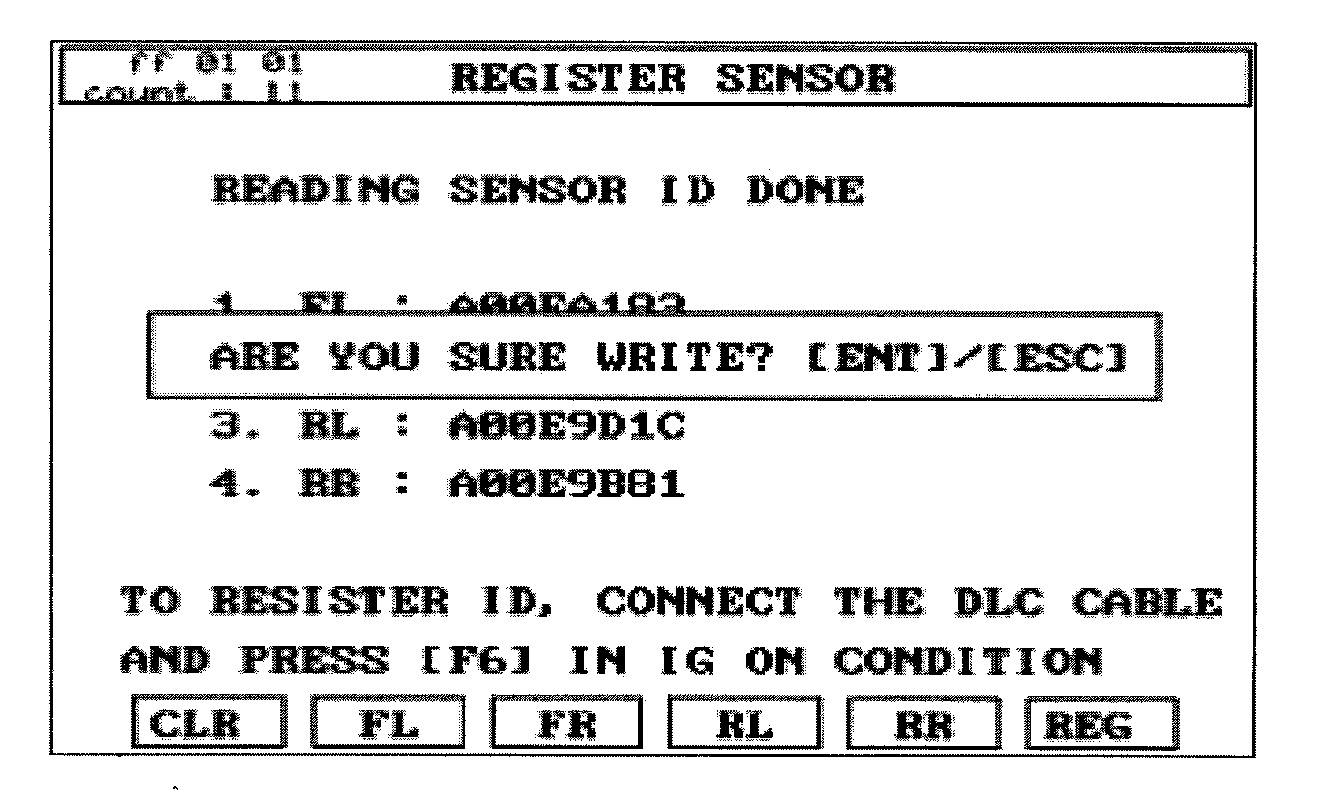

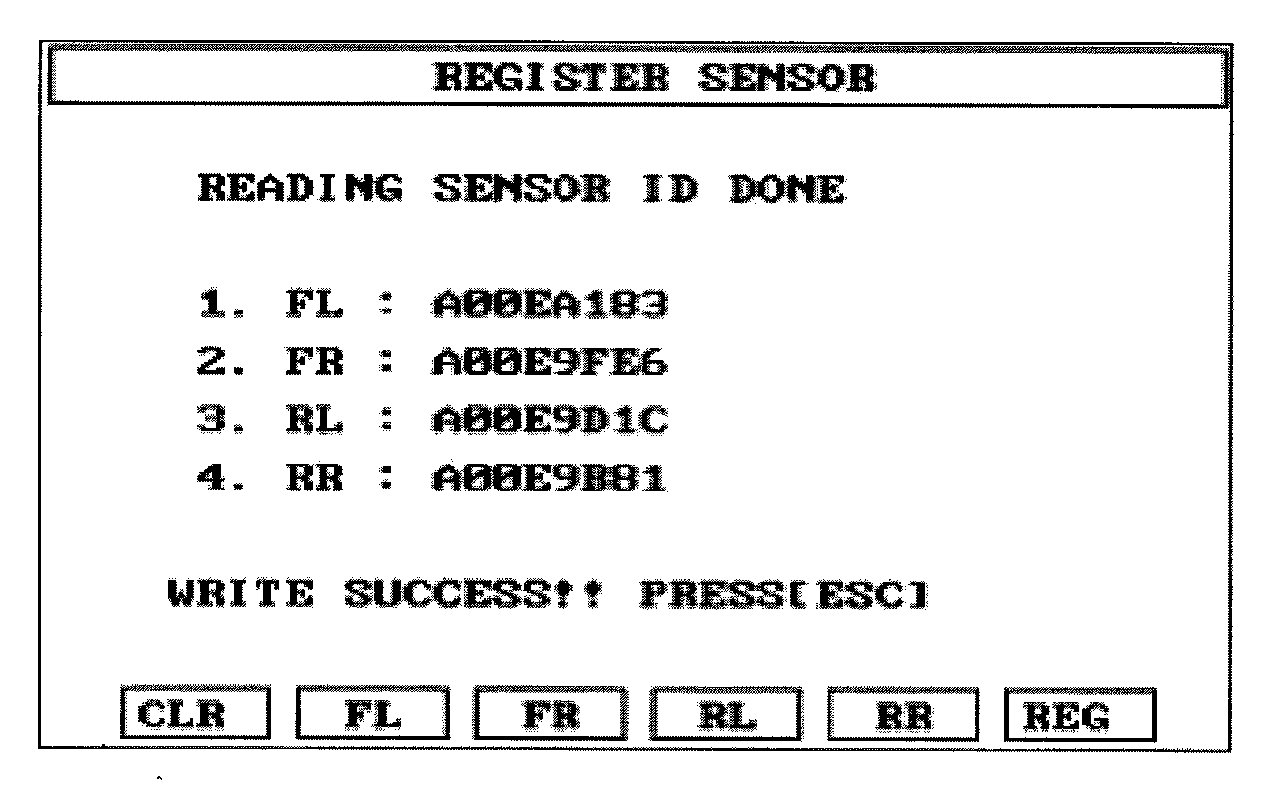

4. Register the four sensor's ids to the receiver.









5. Cycle Ignition, wait 4 minutes and check that Normal Receiver State is now indicated.
