Rear Channel Replacement

  1. Remove front door trim(See DOOR TRIM REPLACEMENT  ).
  2. Remove the door trim seal.
  3. Remove the glass.
  4. Remove the rear channel(A).

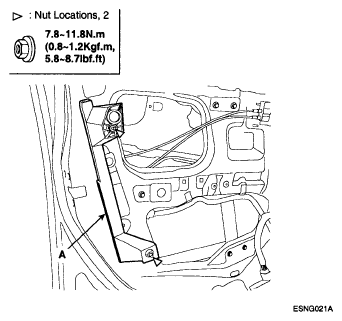

    Fig 1: Identifying Rear Channel With Torque Specification
    G04802703Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
    NOTE:
    • If the door trim seal is damaged, it must be replaced.
