Starting System: Starter: Component

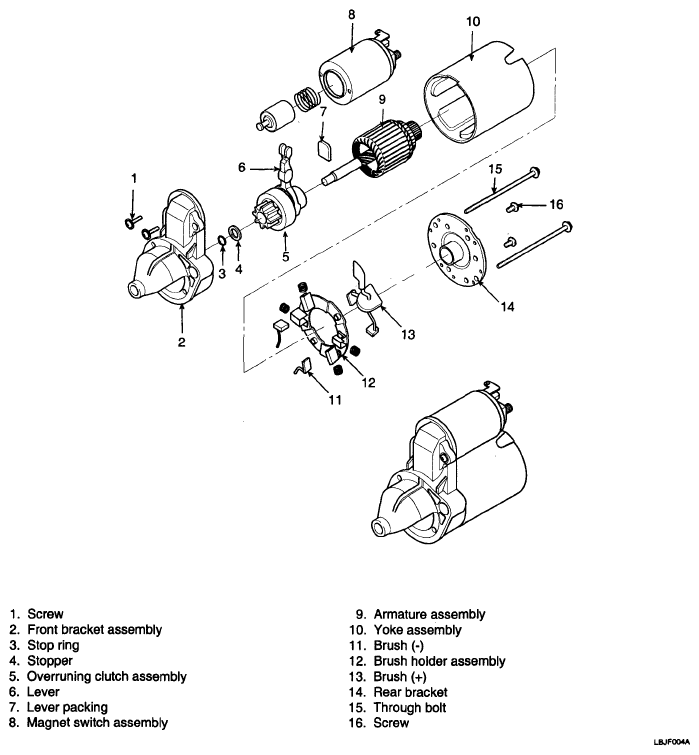

Fig 1: Identifying Starter Component

G04801445

Courtesy of HYUNDAI MOTOR CO.
