Humidity Sensor: Service and Repair

HUMIDITY SENSOR

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

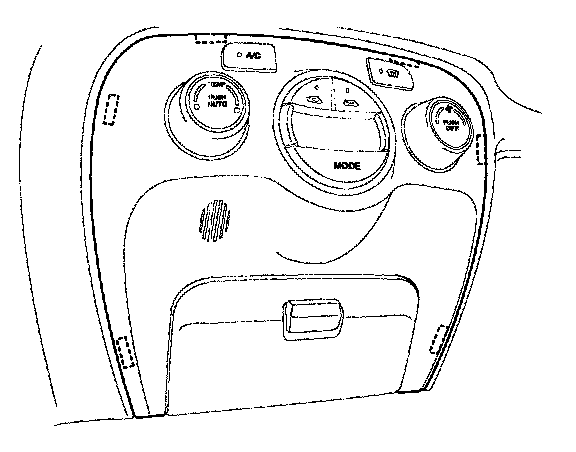

2. Remove the center facia panel (A).

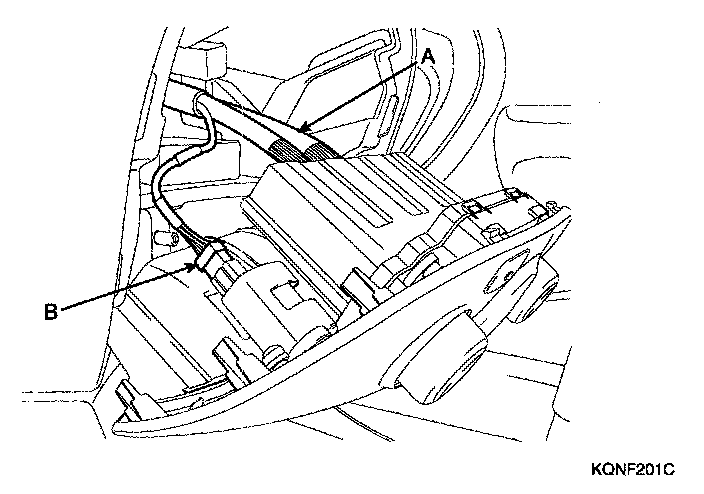

3. Disconnect the A/C controller connector(A) and humidity sensor connector (B).

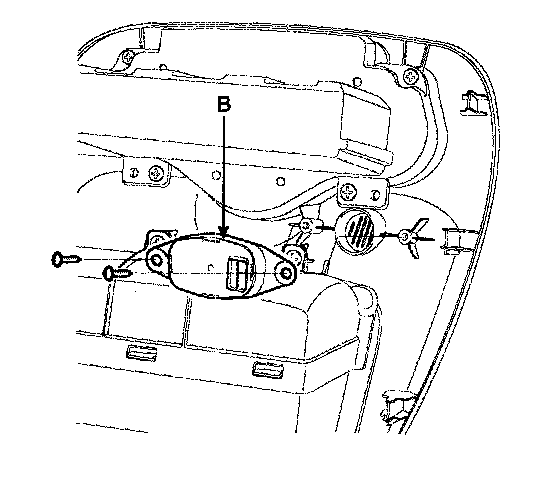

4. Loosen 2 screws and then remove the humidity sensor (B).
5. Installation is the reverse order of removal.
