Rear Wheel Alignment

REAR WHEEL ALIGNMENT

TOE-IN
Standard value

Toe-in mm(in): 2 - 6 (0.078 - 0.236)

CAMBER
Standard value -1' ± 30'

WHEEL RUNOUT
1. Jack up the vehicle and support it with jack stands.

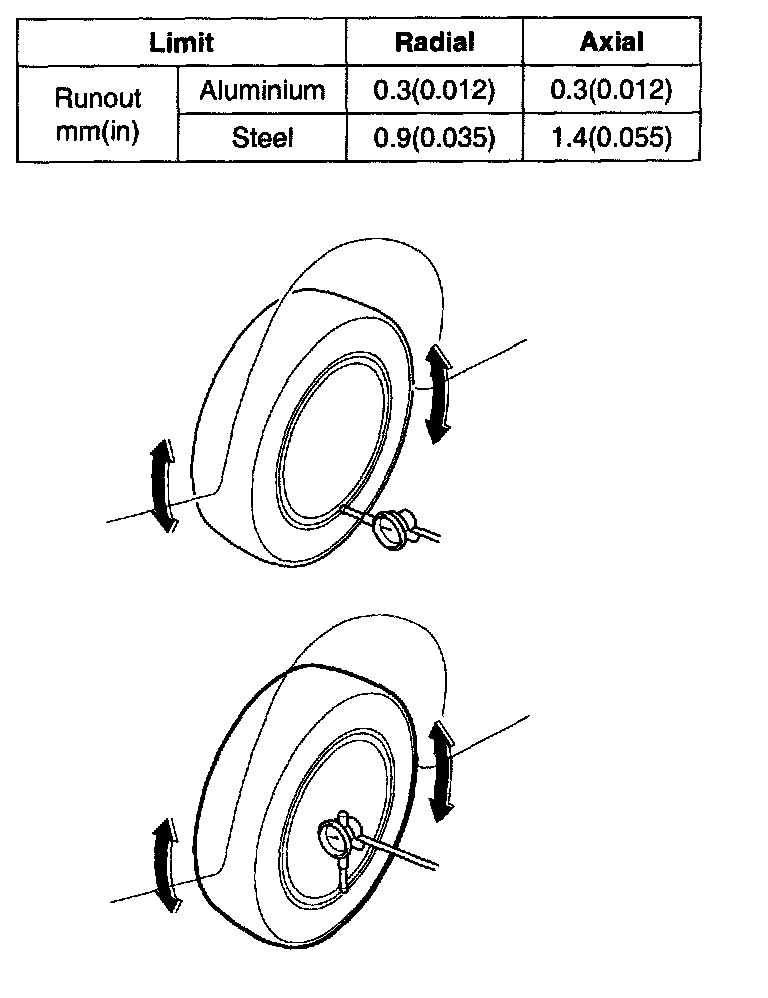

2. Measure the wheel runout with a dial indicator as illustrated.
3. Replace the wheel if the wheel runout exceeds the limit.
