Fuse Block: Service and Repair

RELAY BOX (PASSENGER COMPARTMENT)

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

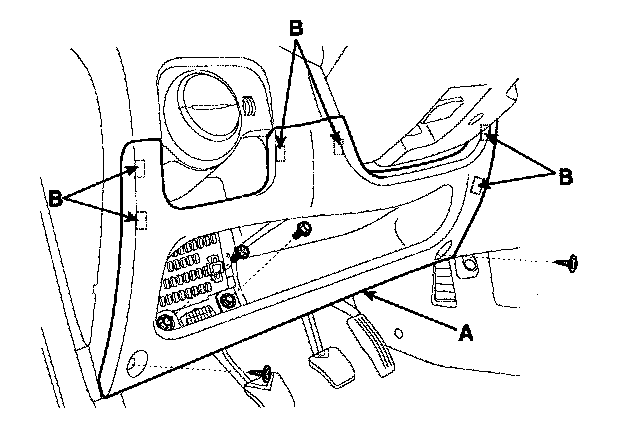

2. Remove the crash pad lower panel (A). Avoid damaging retaining clips (B).

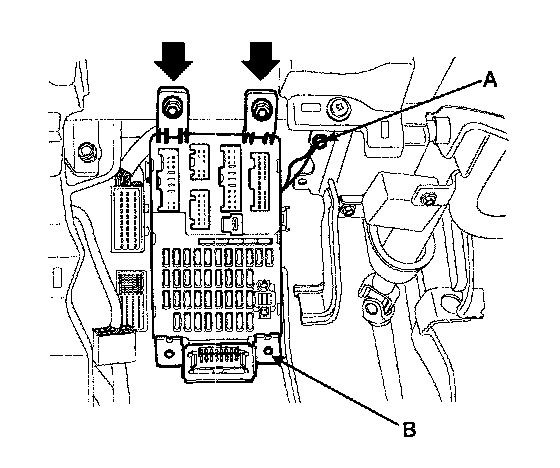

3. Disconnect the connectors of junction box arid loosen the ground cable (A).
4. Remove the junction box (B) after loosening the mounting nuts (2EA).
5. Installation is the reverse of removal procedures.
