Lower Panel Replacement

  1. Remove the crash pad side cover (See COVER REPLACEMENT ).
  2. After loosening the crash pad lower panel mounting screw, then remove the lower panel (B).
  3. Disconnecting the connector (A).

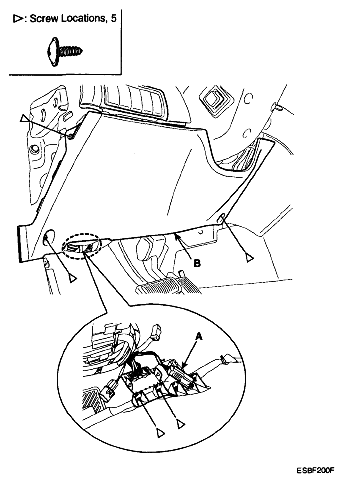

    Fig 1: Identifying Connector And Lower Panel
    G04881148Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
