Component Location

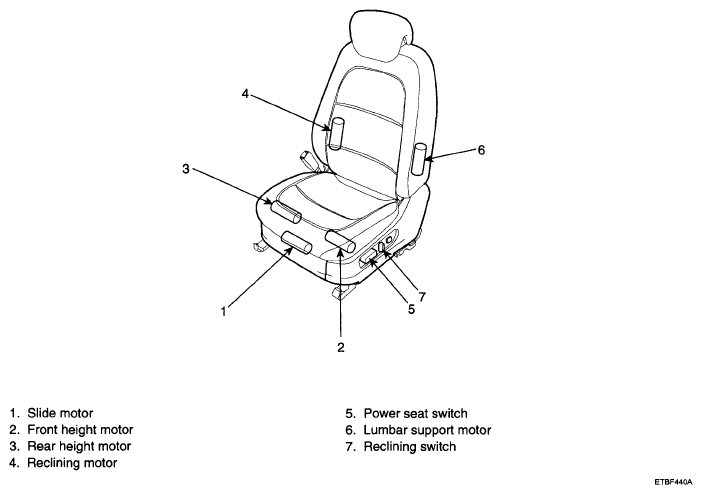

Fig 1: Identifying Power Seat Component Location
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
