Front Door Module Assembly Replacement

Remove the following parts.
- Front door trim (See REPLACEMENT ).
- Glass (See GLASS REPLACEMENT ).
- Inside handle (See INSIDE HANDLE REPLACEMENT ).
- Outside handle (See OUT SIDE HANDLE REPLACEMENT ).
Loosen the door module mounting bolts, then remove the door module (A).

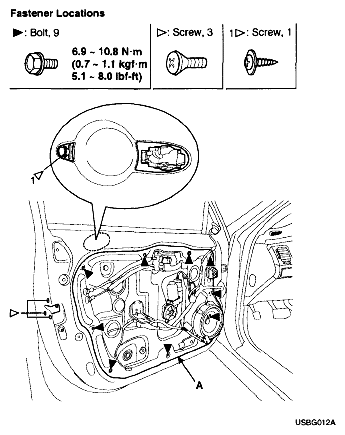

Fig 1: Identifying Door Module
Courtesy of HYUNDAI MOTOR CO.
Disconnect the door module wiring harness (A), then remove the module assembly (B).

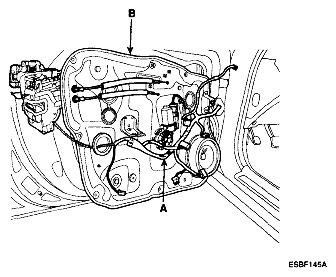

Fig 2: Identifying Door Module Wiring Harness And Module Assembly
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly and each cable is connected securely.
- Make sure the door lock and open properly.
