Power Window Switch Replacement

  1. Remove the front door trim (See REPLACEMENT  ).
  2. Loosen the mounting screws (A).

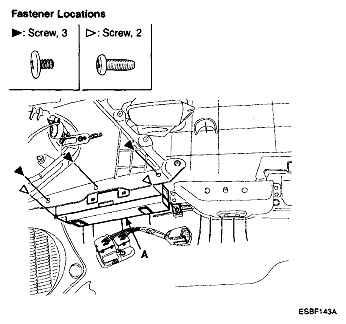

    Fig 1: Identifying Mounting Screws
    G04881082Courtesy of HYUNDAI MOTOR CO.
  3. Remove the power window switch (A).

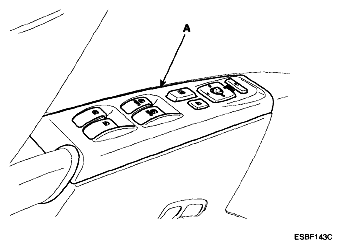

    Fig 2: Identifying Power Window Switch
    G04881083Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse the removal.
